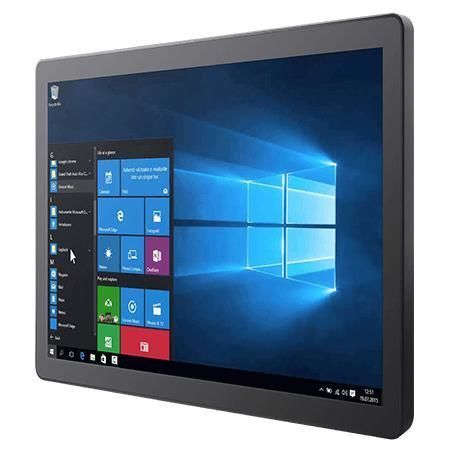

Multitouch screen panel PC R19IT7T-GCM1

PCAP capacitive touch screen19"1280 x 1024

Overview
Winmate R19IT7T-GCM1 is a 19.0-inch standalone HMI panel PC for machine control, factory automation and operator HMI. It integrates Intel® Core™ Tiger Lake i5 CPUs, front IP65 protection, fanless metal housing and multiple industrial I/Os for system integration in mission-critical environments.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (no vPro) or i5-1145G7E (with vPro)
• 19.0" display, 1280 x 1024 resolution
• Multi-display support via LVDS / eDP panel interface
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen.2 Type-A, Gigabit + 2.5G LAN
• 12V single-voltage DC input
• Front IP65 water and dust protection
• Fanless design for reduced maintenance

Display

• Size: 19.0 inches
• Touch / Glass: Projected Capacitive multi-touch
• Resolution: 1280 x 1024
• Brightness: 250 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm

System specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per slot)
• Storage: 128GB SSD default; options up to 4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Ubuntu 22.04 (Linux: Wake on Touch not supported)
• WLAN / Bluetooth: optional (M.2)

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65

IO Ports

• USB: 4 x USB 3.2 Gen.2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4; 1 x HDMI 2.0 (optional)
• Audio: 1 x Mic in; 1 x Line out
• Expansion: 1 x M.2 2242/2280 Key M (SATA/NVMe); 1 x M.2 2230 Key E for WiFi (optional)
• Indicators: LED for power and storage
• Brightness control: brightness adjustment knob

Mechanical

• Dimensions: 445 x 370 x 62 mm
• Mounting: VESA mount (default); panel mount (optional)
• Enclosure: metal housing with plastic bezel
• Cooling: fanless design

Power

• Power input: 12V DC (Din4 pin connector)
• Adapter: 12V 120W

Controls & Buttons

• 1 x Power button
• 1 x Reset button

Accessories (included / typical)

• Quick Start Guide (hardcopy)
• AC adapter
• Power cable

Certifications

• CE
• FCC

Technical specifications

• Model: R19IT7T-GCM1
• Brand: Winmate
• Display: 19.0" P-Cap multi-touch, 1280 x 1024, 250 nits
• CPU options: Intel® Core™ i5-1135G7 / i5-1145G7E
• Memory: up to 64GB (2 x SO-DIMM)
• Storage options: 128GB SSD default; up to 4TB; SATA III optional
• LAN: Gigabit + 2.5 Gigabit
• Serial: RS232/422/485 + RS232
• Front protection: IP65
• Dimensions: 445 x 370 x 62 mm
• Power: 12V DC input, 12V 120W adapter
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Certifications: CE, FCC
