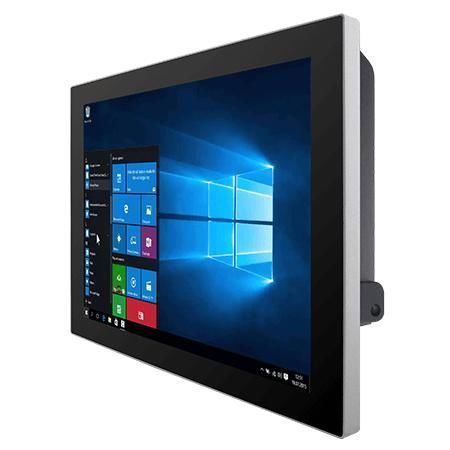

Multitouch screen panel PC R15IAD3S-GCC3(HB)

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15IAD3S-GCC3(HB) is a 15" standalone Panel PC HMI designed for machine control, factory automation and operator HMI applications. It integrates a 12th Gen Intel® Core™ i5-1235U processor in a fanless, rugged enclosure with a true flat P-Cap touchscreen front that is easy to clean and provides Front IP65 protection.

Key features

• 15" 1024 x 768 display with Projected Capacitive (P-Cap) multi-touch
• 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• Fanless cooling system for silent and efficient operation
• Front IP65 for protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning and maintenance
• Rich I/O including 2 x 2.5 Giga LAN, 1 x COM (RS232/422/485), 2 x USB 3.2 Gen2x1

Product highlights / descriptive details
The GC Series Panel PC offers a scratch-resistant glass cover lens with multi-touch capability supporting up to four touch points for smooth interaction. Fanless thermal design using heat sinks and vapor chambers ensures efficient temperature regulation without noisy fans. Front IP65 rating provides robustness against splashes and dust, making the unit suitable for demanding industrial environments. The true flat design prevents ingress points and simplifies cleaning to maintain hygienic or dusty production areas.

Certifications

• CE
• FCC

Technical specifications

• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Size: 15.0 inches
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 300 nits (Default); 1000 nits (Optional)
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88/88/88/88
• Display - Active Area: 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB (Default); 16GB (Optional); 32GB (Optional)
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating System options: Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Linux Ubuntu 22.04 (Optional; does not support Wake on Touch)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65
• IO Ports - USB: 2 x USB 3.2 Gen2x1 (Type-A)
• IO Ports - Serial: 1 x RS232/422/485 (Default RS232); 1 x RS232 (Optional)
• IO Ports - LAN: 2 x 2.5 Giga LAN RJ45
• IO Ports - Video: 1 x HDMI 2.0 (Optional)
• IO Ports - Audio: 2 x Speaker
• Mechanical - Dimension: 363.4 x 277.86 x 44.5 mm
• Mechanical - Mounting: VESA mount; Panel mount
• Mechanical - Enclosure: Aluminum
• Cooling System: Fanless design
• Power - Power Rating: 12V DC input (Default); 9~36V DC input (Optional)
• Control / Buttons: 1 x Power Button; 1 x Reset Button
• Accessory (included): Quick Start Guide (Hardcopy); AC Adapter; Power Cable
