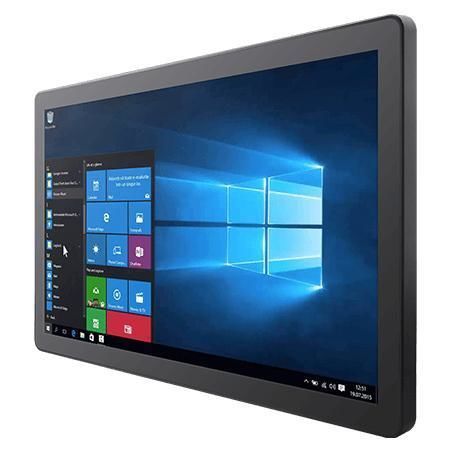

Multitouch screen panel PC W22IT7T-GCA3

TFT LCDPCAP capacitive touch screen21.5"

Overview
Winmate W22IT7T-GCA3 is a 21.5-inch standalone Panel PC HMI engineered for machine control, factory automation and operator HMI applications. It integrates Intel® Core™ Tiger Lake UP3 i5-class processors in a fanless chassis with front IP65 protection, multiple I/O and long lifecycle availability.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (or i5-1145G7E with vPro)
• 21.5" Full HD (1920 x 1080) projected capacitive multi-touch
• Multi-display support via LVDS / eDP
• Multiple I/O: 2 serial ports, 4 x USB 3.2 Gen 2 Type-A
• 12V single-voltage DC input; front IP65 water/dust protection; fanless design

Certifications

• CE
• FCC

Product details
Front bezel with projected capacitive touchscreen offers edge-to-edge, easy-to-clean surface suitable for washdown or dusty environments. The unit supports diverse storage options, M.2 expansion and TPM 2.0 security. Multiple mounting options (VESA default, panel mount optional) and dual Intel Ethernet controllers (1 x 1G, 1 x 2.5G) enable flexible industrial integration.

Accessories included

• Quick Start Guide (hardcopy)
• AC adapter
• Power cable

Technical specifications

• Model: W22IT7T-GCA3
• Brand: Winmate
• Display: 21.5" TFT, 1920 x 1080, P-CAP multi-touch, 250 nits, 3000:1 contrast
• Processor: Intel Core i5-1135G7 (option i5-1145G7E)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional up to 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• USB: 4 x USB 3.2 Gen 2 Type-A
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x DP 1.4; 1 x HDMI 2.0 (optional)
• Expansion: M.2 2242/2280 Key M (SATA/NVMe), M.2 2230 Key E (WiFi)
• Security: TPM 2.0
• Power: 12V DC (Din4), adapter 12V 120W
• Dimensions: 530 x 322 x 62 mm; Mounting: VESA (default), panel mount optional
• Operating temp/humidity: 0°C to 50°C; 10% to 90% RH (non-condensing)
• Shock & vibration: MIL-STD-810G
• Front protection: IP65
