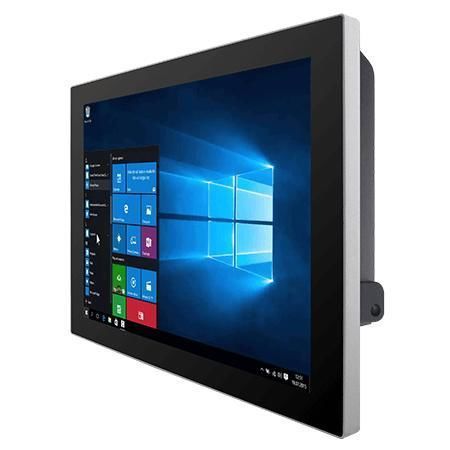

Multitouch screen panel PC R15IT3S-GCC3(HB)

TFT LCDPCAP capacitive touch screen15"

Overview
The Winmate R15IT3S-GCC3(HB) is a 15-inch standalone HMI panel PC engineered for machine control, factory automation and operator HMI applications. It features a true flat edge-to-edge front with Front IP65 protection, fanless thermal design for low power and long maintenance intervals, and a rugged aluminum enclosure to resist shock and vibration in industrial environments.

Key features

• 15" TFT XGA (1024 x 768) display with Projected Capacitive (P-Cap) multi-touch
• Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz) processor (option: i5-1145G7)
• Fanless cooling for quiet, maintenance-free operation
• Front IP65 protection against dust and water splashes
• True flat, edge-to-edge front glass for easy cleaning and hygiene
• Industrial I/O: 2 x LAN (RJ45), 1 x COM (RS232/422/485), 2 x USB 3.0, optional HDMI

Certifications

• CE
• FCC

Product highlights / additional information

• Designed for industrial use cases requiring hygiene, long lifecycle availability and reliability (e.g., food processing, pharmaceutical, OEMs, production lines)
• Fanless, low-power platform with rugged aluminum enclosure and MIL-STD-810G shock/vibration capability
• Multiple memory and storage configurations with M.2 SATA/NVMe options to match application performance needs
• Flexible mounting: VESA and panel mount ready

Technical specifications

• Model: R15IT3S-GCC3(HB)
• Manufacturer: Winmate
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Size: 15.0 inches
• Display - Resolution: 1024 x 768 (XGA)
• Display - Panel Brightness: 300 nits (Default); 1000 nits (Optional)
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88/88/88/88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) (Default); Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional)
• System - Memory: 4GB (Default); optional 8GB / 16GB / 32GB (SO-DIMM, DDR4 3200 MHz, Max. 32GB)
• System - Storage: 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD; default 128GB; optional 256GB, 512GB, 1TB/2TB/4TB (NVMe) and 1 x SATA III up to 2TB (Optional)
• System - Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45)
• System - Security: TPM 2.0
• System - Operating System (optional): Windows 11 IoT Enterprise SAC (64-bit); Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810G Method 516.6 Procedure I
• Environment - Vibration: MIL-STD-810G Method 514.6 Procedure I
• Environment - IP rating: Front IP65
• Certifications: CE, FCC
• I/O Ports - USB Port: 2 x USB 3.0
• I/O Ports - Serial Port: 1 x RS232/422/485 (Default RS232) ; optional 1 x RS232
• I/O Ports - LAN: 2 x RJ45
• I/O Ports - Video: 1 x HDMI (Optional)
• I/O Ports - Audio: 2 x Speaker
• Mechanical - Dimension: 363.4 x 277.86 x 44.5 mm
• Mechanical - Mounting: VESA mount; Panel mount
• Mechanical - Enclosure: Aluminum
• Mechanical - Cooling System: Fanless design
• Accessory - Standard: Quick Start Guide (Hardcopy), AC Adapter, Power Cable
• Power - Power Rating: 12V DC input (Default); 9 ~ 36V DC input (Optional)
• Control - Button: 1 x Power Button; 1 x Reset Button
