Servo-electric bending machine SB series
for tubesCNC3-axis

servo-electric bending machine
servo-electric bending machine
servo-electric bending machine
servo-electric bending machine
Add to favorites
Compare this product


Characteristics

Operation
servo-electric
Product handled
for tubes
Control
CNC
Number of axes
3-axis

Description

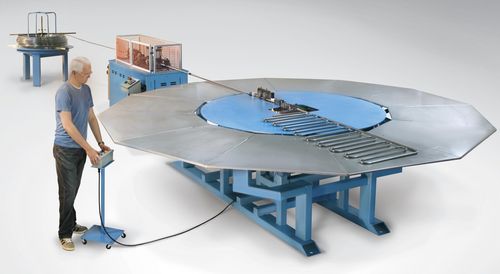

Product Description The SB series CNC serpentine tube benders are designed for compact production use. All SB models tube benders provide for serpentine tube bending without the need to rotate the material between bends (R axis plane rotation). Program the bend angles, centerline radius, straight lengths, and serpentine production begins. The tubing always stays in contact with the support table maintaining flatness. One of the advantages of the SB series type tube bender is its ability to manage the serpentine coil as it is being formed. Because the bend head can bend both CW and then CCW without rotating the tube between bends, the ability to control larger serpentine coils becomes much easier. Winton offers several serpentine bending solutions ranging from 5mm OD capacity to 50mm OD capacity. All solutions make use of a 3 axis servo driven CNC system that allows a user to program all the angles and all straight lengths. The controller will compensate for spring back and provide for a 3D CAD model of the tube prior to bending. The 3D viewer is great for part verification. The rest is CNC controlled. It’s that simple. Serpentine bending should be easy. All models bend CW and CCW without the need to rotate the tube between bends. This feature often becomes important to ensure the bent serpentine tubing remains flat. In the world of heat transfer, a flat serpentine coil translates into an efficient product. A split die actuator comes standard and allows for tight radius bending. The design of the bend head allows for instant CW or CCW bending. Therefore, there is no need to reposition the bend head for the opposite hand rotation.
