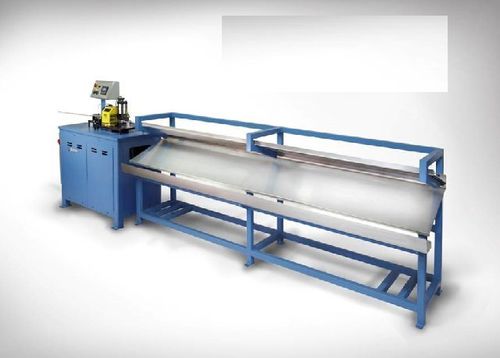

Guillotine cutting machine CTL-12L
for tubesautomatic

guillotine cutting machine
guillotine cutting machine
Add to favorites
Compare this product


Product handled
for tubes
Other characteristics


Product Description Model CTL-12L Automatic Feed & Lathe Type Cut - Standard Equipment, Including: • Microprocessor controlled • Closed loop feedback system used to feed material forward • Chip type cut, cut head rotates about static material • (1) parting tool and (1) chamfering tool (OD) included • Quick Change Backup Cam system for minimal change-over time (cams not included) • Programmable material feed rate (1 thru 5) • Programmable part cut length- able to change part length without stopping machine • Programmable number of parts to cut, able to change quantity without stopping machine • (2) pneumatic clamp assemblies for material support (clamp dies not included) • Free standing machine with NEMA box for all electrical controls • Material low indicator switch used to detect end of tubing • Interlocked guard, guard must be in position to operate cut head
