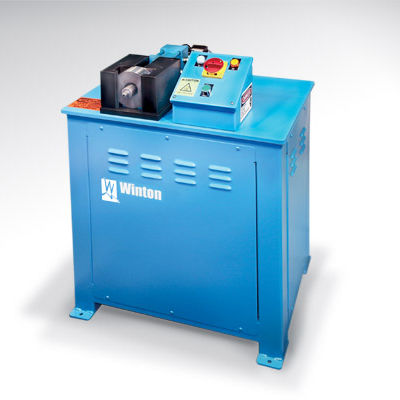

Pipe-end forming machine E50
metalhydraulic

pipe-end forming machine
pipe-end forming machine
Add to favorites
Compare this product


Characteristics

Product handled
pipe-end
Treated material
metal
Other characteristics
hydraulic

Description

Product Description All tube end formers are designed and tested in house. We use standard purchased components to build every tube end forming machine. We at Winton are proud of the quality of every end former sold. Please, call us today and ask how the quality of the end forming machines we build will translate into quality end formed tubes on your shop floor. The model E50 tube end former is a production machine used to expand the end of a tube. The end former uses 8 segmented fingers to minimize the tooling marks on the tube as the tube expands. No clamp die is used for this process. This means you can have a bent tube close to the end of the tube and still expand the tube. The user inserts the tube over the die fingers and then cycles the end former. Once the ram stroke is complete, the hydraulic control valve automatically returns the ram to its home position. Model: E50 Tube End Former Tube Capacity: 2" OD tubing Repeatability: ± .002" on the diameter Tooling style: quick change Max. Pressure: 1500 psi Expand time: 3 seconds Expand time: 1 second, optional Loader/unloader: optional Drop-in tooling, quick change Fine thread adjustment on expanded diameter NEMA enclosure contains all 24V DC logic Dual palm switches for safe operation (optional)
