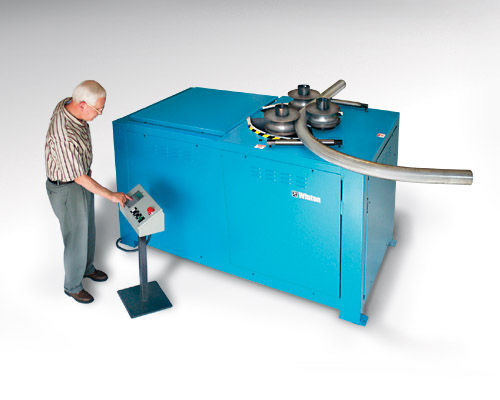

The model TR100H tube bending machine offers programmable bend control on the ram and roll drive. To ensure the performance of the TR100H, a high resolution encoder ensures the final position of the linear length rolled. Winton Machine has designed the TR100H tube bending machine to allow for simple user operation via a keypad and display. Winton Machine has been building tube benders for over a decade. From its stout structural frame to its high resolution encoders, the TR100H continues to bend quality parts for industries such as furniture, play ground equipment, and boating applicaitons.
Tube Bending Capacity: 4" OD x .188" wall Steel.
Repeatability: .003 on linear ram movement
Pitch control: manual support adjustments
Weight: 5500 lbs.
Footprint: 86" long x 60" wide
Max. Pressure: 2000 psi @ 7 1/2 hp
Roll drive: 15 hp
Microprocessor controlled servo ram: program up to 30 ram/roll moves
Manually controlled 2nd ram with digital readout
Keypad & display (24 keys) for user input
Fast production bending, variable speed control on roll and ram drive
High-resolution encoder, direct drive to roll dies
Heavy duty linear ball bearings guide ram head
Multi-radius bending, programmable
Off line programming, optional
Dual palm switches (optional)
Optional Loader Available
