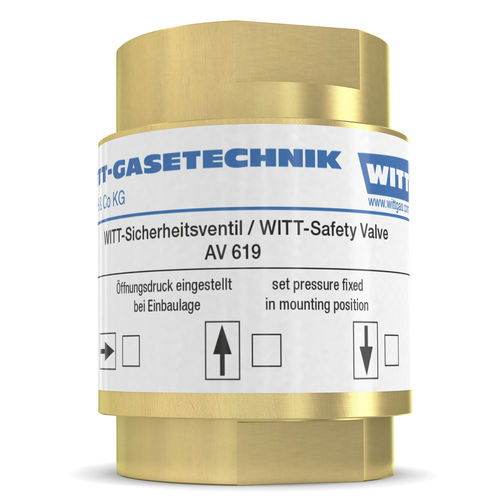

Gas safety relief valve AV 619for pipelinesfor tanksbrass
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Applications
- for pipelines, for tanks
- Body material
- brass
- Other characteristics
- compact, stainless steel
- Controlled pressure
Min.: 5 mbar
(0.1 psi)Max.: 500 mbar
(7.3 psi)- DN
0.5 in, 0.75 in, 1 in
- Flow rate
Min.: 2.6 m³/h
(91.82 ft³/h)Max.: 90.7 m³/h
(3,203.04 ft³/h)- Weight
790 g
(27.87 oz)
Description
Safety Relief Valve for venting excess pressure from receivers, pipelines and other equipment, 5 up to 500 mbar
spring-loaded, direct-acting safety relief valve
every safety relief valve 100% tested
set to exactly the opening pressure you specify
TÜV-certification of pressure setting
different connections for inlet and outlet
Spring-loaded, direct-acting safety relief valve for venting excess pressure from receivers, pipelines and other equipment. Every safety relief valve 100% tested.
Benefits:
individual opening pressure
TÜV-certification of pressure setting
sealing material to suit gas or at customer's request
compact size for easy, problem-free installation
range of inlet and outlet connections
adapter for connection to ventilation pipe
free of oil and grease
Approvals
Company certified to ISO 9001and PED 97/23/EC Module H
