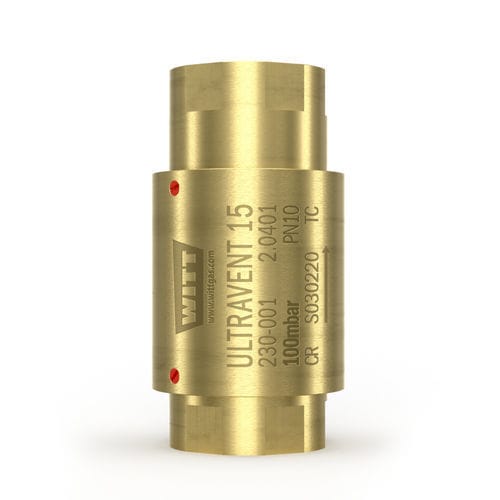

Gas safety valve ULTRAVENT 15

GNPTDIN

For precise control of under or over pressure between 5 and 500 mbar: can be used as a back pressure regulator, pressure control valve, vacuum breaker or classic safety relief valve. G 1/2 or 1/2" NPT threads. - Flow-optimised valve system for maximum blow-off performance - Every millibar safety valve 100% tested - Makes the smallest pressure ranges manageable and reliably protects sensitive processes and systems - Unique: TÜV component mark as a safety valve in accordance with DIN EN 4126-1 (100-500 mbar) - Lowest leakage rates thanks to high-quality elastomer seals - Optional: FDA-approved elastomers and components - Individual TÜV approval of the set opening pressure Information: - Closes tightly again after activation - Exact, individually adjustable opening pressure from 5 up to 500 mbar - Much smaller than previous designs - High blow-off volume flow - Reliability tested over 100,000 cycles - G 1/2 or 1/2" NPT threads - Pressure rating PN10 - Free of oil and grease - Can be used as a control- and pressure maintaining valve - Can also be used as a vacuum breaker - TÜV-certification - As a pressure maintaining valve with 100 μm filter in the gas inlet (1.4301) - Strainer at outlet 100 μm (1.4301) as a supplementary component, prevents external contamination - Available in brass or stainless steel (ES) - Temperature: -30 - 100 °C / 86 - 212 °F (PEEK - valve disc) -30 - 270 °C / 86 - 518 °F (stainless steel 1.4404 - valve disc) - Seals NBR, CR others for example elastomers with FDA approval upon request - Company certified according to ISO 9001 and PED 2014/68/EU Module H - For safety relief valves made of brass and without filter with use of oxygen: Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems - Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
