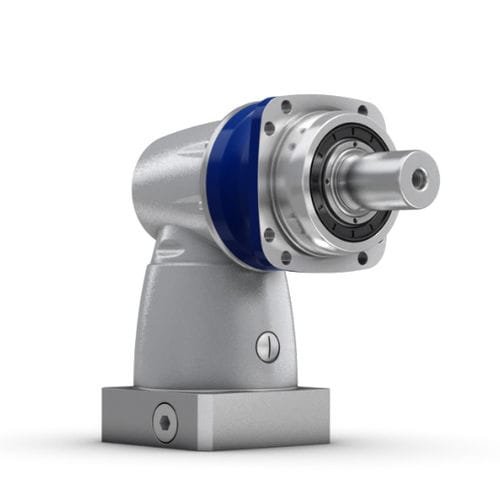

Bevel gearbox XPC+ seriesright anglesolid-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm
- Configuration
- compact
- Rotational speed
6,000 rpm
(37,699.1118 rad.min-1)- Backlash
0.03 °, 0.07 °
- Gear ratio
Max.: 20 unit
Min.: 4 unit
Description
Compact and powerful
The XPC+ bevel gearbox is distinguished by small reduction ratios (i=1 and 2) in the right-angle stage. The product structure has a positive impact on temperature development at the gearhead, so that less heat builds up in the system. The outcome: higher positioning accuracy for the system as a whole.
