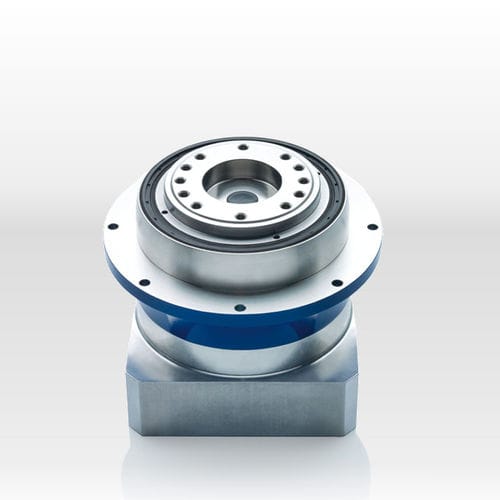

Planetary gear reducer TP+ seriescoaxialhollow-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 500 - 1000 Nm, > 10 kNm, 1 - 2 kNm, 2 - 5 kNm, 5 - 10 kNm
- Mounting
- flange-mounted
- Configuration
- compact
- Performance
- high-precision, low-backlash, high-torque
- Applications
- for robotics
- Rotational speed
7,500 rpm
(47,123.8898 rad.min-1)- Backlash
0.02 °, 0.05 °
- Gear ratio
Max.: 100 unit
Min.: 4 unit
Description
Compact top performers with output flange. The standard version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The TP+ HIGH TORQUE is particularly well suited for high-precision applications in which high torsional rigidity is required.
