Bevel gearbox CPK series
right anglesolid-shaft100 - 200 Nm

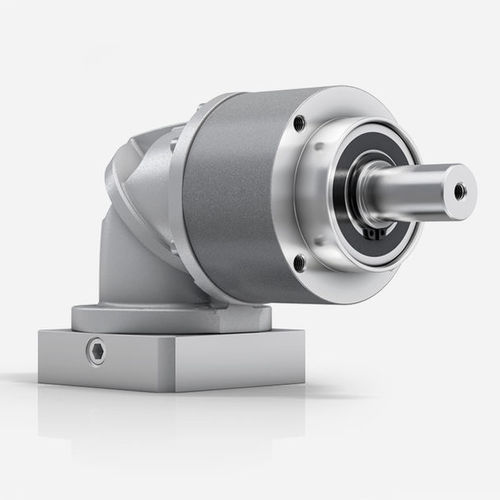

Bevel gearbox - CPK series - WITTENSTEIN SE - right angle / solid-shaft / 100 - 200 Nm
Bevel gearbox - CPK series - WITTENSTEIN SE - right angle / solid-shaft / 100 - 200 Nm
Bevel gearbox - CPK series - WITTENSTEIN SE - right angle / solid-shaft / 100 - 200 Nm - image - 2
Bevel gearbox - CPK series - WITTENSTEIN SE - right angle / solid-shaft / 100 - 200 Nm - image - 3
Add to favorites
Compare this product

Characteristics

Type
bevel
Shaft orientation
right angle
Shaft configuration
solid-shaft
Torque
100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm
Configuration
compact
Applications
shaft
Rotational speed

5,000 rpm
(31,415.9265 rad.min-1)

Backlash

0.22 °

Gear ratio

Max.: 100 unit

Min.: 3 unit

Description

Economically around the corner. The CP bevel gearbox with output shaft of the alpha Basic Line is specially designed for applications with medium requirements for positioning accuracy. The extremely compact bevel gear stage enables use in applications with space constraints.
