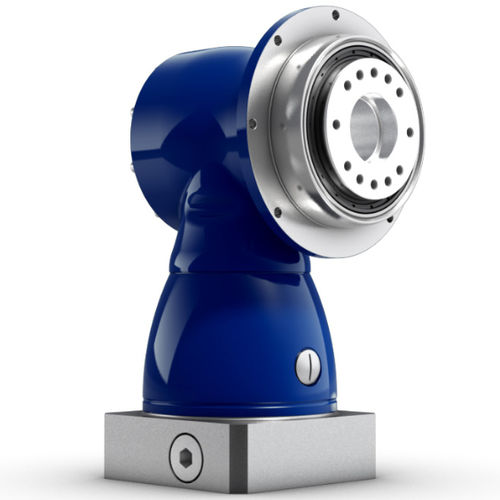

Hypoid gear reducer TK+ seriesright anglehollow-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- hypoid
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 500 - 1000 Nm
- Mounting
- flange-mounted
- Configuration
- flange
- Performance
- precision, low-backlash
- Applications
- for robotics, shaft
- Rotational speed
7,500 rpm
(47,123.8898 rad.min-1)- Backlash
0.07 °
- Gear ratio
Min.: 3 unit
Max.: 100 unit
Description
Space-saving right-angle precision with output flange
The representatives of our versatile hypoid gearboxes with TP+ compatible output geometry and optional hollow shaft. TK+ gearboxes are appreciated for their high precision and efficiency as well as the possibility to combine different options for the gearbox output. With an optional planetary pre-stage it is possible to reach highest input speeds.
