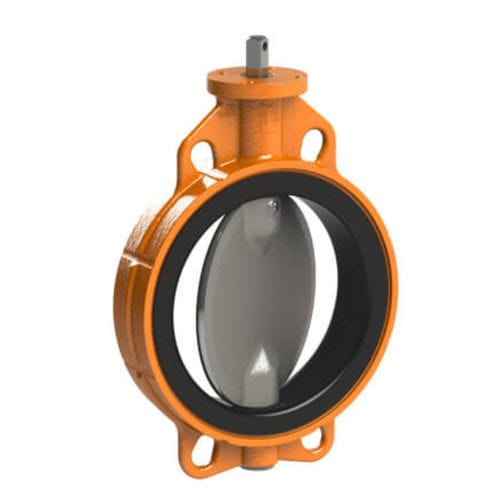

Butterfly valve EVCSleverpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- control
- Body
- concentric, stainless steel, cast iron, steel, rubber
- Applications
- wafer
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)
Description
Rubberlined EVCS
Short pattern, from DN 50 with centring lugs
Construction - Concentric butterfly valve with bonded vulcanised rubber linings
Body type - Wafer type
End connection - EN 1092 PN 6,
ASME B16.5 cl. 150
MSS SP 44 cl. 150
Design pressure - 16 bar / 232 psi
Nominal diameter - DN 50 – 300, NPS 2”- 12”
Face to face - Wafer short, acc. EN558-1/2 Series 20
API 609 Cat. A
Body material - Grey cast iron
Nodulair cast iron
Steel cast
Stainless steel cast
Aluminiumbronze / bronze
Sealing - Rubber seat
Operation - Lever
Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
Catalogs
Wafer Type
5 Pages
