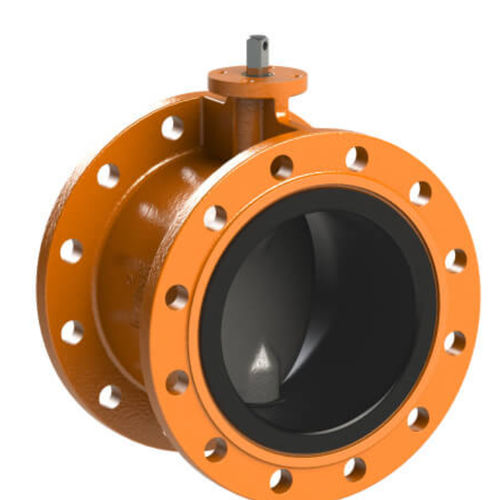

Butterfly valve EVFLleverpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- control
- Body
- double-flange, concentric, rubber
- DN
Max.: 1,500 mm
(59.055 in)Min.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)
Description
Rubberlined EVFL
Long pattern
Construction - Concentric butterfly valve with bonded vulcanised rubber linings
Body type - Double flanged type
End connection - ISO, PN 6 / PN 10 / PN 16
Design pressure - 16 bar / 232 psi
Nominal diameter - DN 50 / NPS 2 up to DN 1500 / NPS 60
Building length - Double flanged long, acc. EN 558 / ISO 5752 Serie 14
Body material - Grey cast iron
Nodulair cast iron
Sealing - Rubber seat
Operation - Lever
Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
