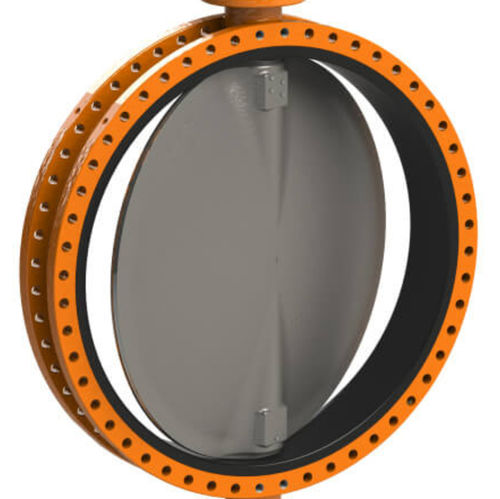

Butterfly valve EVUSleverpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- control
- Body
- with flange, concentric, cast iron, rubber
- Applications
- wafer
- Other characteristics
- pneumatically-operated
- DN
Min.: 600 mm
(23.622 in)Max.: 2,200 mm
(86.614 in)- Pressure
16 bar
(232.1 psi)
Description
Rubberlined EVUS
Short pattern with flanges
Construction - Concentric butterfly valve with bonded vulcanised rubber linings
Body type -
“U”-section wafer type
End connection - ISO, PN 10 / PN 16
ASME, CL 150
Design pressure - 16 bar / 232 psi
Nominal diameter - DN 600 / NPS 24 up to DN 2200 / NPS 88
Building length - Wafer short, acc. EN 558 / ISO 5752, Serie 20
Body material - Grey cast iron
Nodulair cast iron
Sealing - Rubber seat
Operation - Lever
Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
