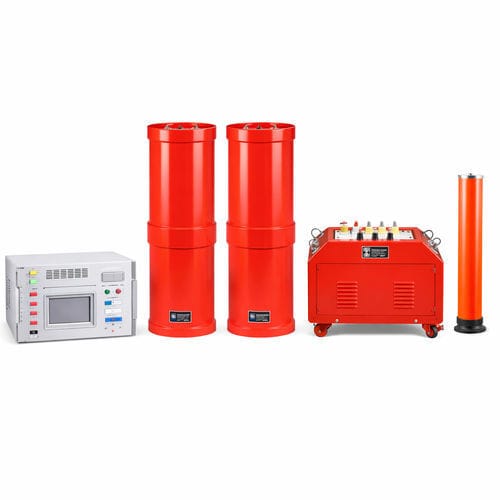

Resonant test system UHV-135kVA/108kVcompactmodularportable
Add to favorites
Compare this product
Characteristics
- Test type
- resonant
- Configuration
- compact, modular, portable
- Other characteristics
- automatic, precision, high-voltage
Description
Product Overview
Principle and application of series resonant test system
Main technical parameters and functions
Applications and features of series resonant test system
Additional product images
Why choose our series resonant system?
- Compact, lightweight series resonant test set for field and laboratory high-voltage testing. DSP-based control ensures stable sinusoidal output and accurate RMS measurements.
Principle and application of series resonant test system
- The UHV-135kVA/108kV system achieves resonance by adjusting the supply frequency so that the reactor and the test capacitor resonate, producing high voltage and large current on the unit under test while requiring relatively low supply power. Typical uses include cable withstand and diagnostic tests, insulation testing and other high-voltage verification tasks where portability and low supply requirements are needed.
Main technical parameters and functions
- Rated capacity: 135 kVA
- Available rated voltages: 27 kV; 54 kV; 108 kV
- Available rated currents: 5 A; 2.5 A; 1.25 A
- Measurement accuracy: system RMS level 1.5
- Operating frequency: 30–300 Hz (frequency-adjustable resonance)
- Output waveform: sinusoidal
- Quality factor: Q ≥ 30 (f = 45 Hz)
- Output voltage waveform distortion: ≤ 1%
- Input supply: single-phase 220 V or three-phase 380 V, 50 Hz
- Continuous operation: 60 minutes at rated load; short overpressure 1.1× for 1 minute
- Temperature rise: ≤ 65 K after 60 minutes at rated load
- Protection functions: overvoltage, overcurrent, zero-start interlock, system mismatch/flashover protection
- Ambient temperature: -20℃ to 55℃
- Relative humidity: ≤ 90% RH
- Altitude: ≤ 3000 m
Applications and features of series resonant test system
- Designed for cable withstand and other high-voltage resonant tests.
- Portable format and low supply power simplify field deployment and international use.
- High Q design and low waveform distortion provide stable, repeatable test conditions.
- DSP control enables precise frequency adjustment and measurement.

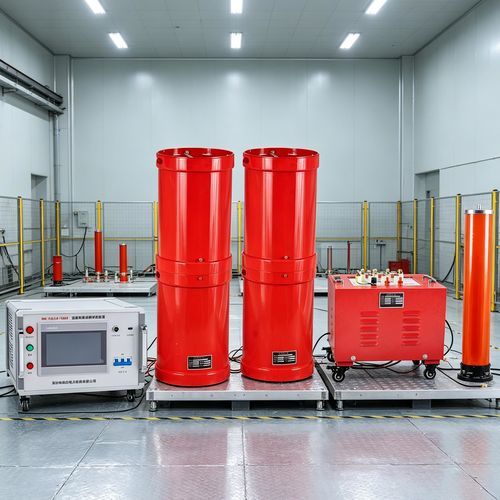

Additional product images
- Product images illustrate device appearance, control panel, connection points and major components to assist in installation and operation assessment.
Why choose our series resonant system?
- Fully automatic foolproof operation
- Data Internet of Things
- Capable of adapting to extreme environments
- Complies with international standards
- Competitive prices
