De-energized conductor cable identifier UHV-520

conductor checker

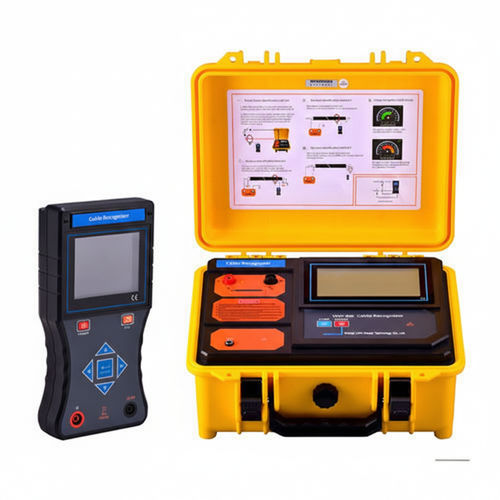

UHV-520 Off-line power cable identification tester is designed to identify a single target power cable among multiple cables to prevent accidents caused by incorrect cutting of live cables. The system combines a battery-powered transmitting host and a color-LCD receiving host to provide clear, multi-criteria identification in congested cable bundles.

Features

• Transmitting host powered by a high-energy lithium battery: no on-site 220 V required; compact, low consumption and multi-level battery indication.
• Receiving host with color LCD showing signal direction, amplitude and interval synchronously; multiple signals are retained on the time axis for improved identification accuracy.
• Flexible measuring coil enables identification where rigid calipers cannot be applied, solving issues from cable congestion and overlap.
• Includes launch caliper for live identification by caliper coupling, allowing both offline and live use with one instrument.
• High-strength ABS protective case for instrument protection and transport in harsh field environments.

Transmitting host

• Charging voltage: DC 5V
• Power consumption: ≤ 3W
• Operating time: ≥ 12 h
• Signal interval: ≈ 2 seconds
• Launch caliper inner diameter: ≥ 125 mm
• Operating temperature: -35℃ ～ +55℃
• Environmental humidity: ≤ 95% RH

Receiving host

• Charging voltage: DC 5V
• Power consumption: ≤ 1W
• Identification criteria: direction, amplitude, interval (triple-criteria judgment)
• Reception sensitivity thresholds: power–ground circuit resistance ≤ 500 Ω; live–ground circuit resistance ≤ 200 Ω
• Operating time: ≥ 12 h
• Operating temperature: -35℃ ～ +55℃
• Environmental humidity: ≤ 95% RH

Dimensions

• Case size: 520 mm × 350 mm × 170 mm

Nicknames

• Power cable identifier
• Off-line cable identifier
• Cable identifying
• Cable identification tester

Technical specifications

• Model: UHV-520
• Transmitter & receiver charging voltage: DC 5V
• Transmitter power consumption: ≤ 3W
• Receiver power consumption: ≤ 1W
• Battery endurance: ≥ 12 hours (both transmitter and receiver)
• Signal emission interval: ≈ 2 seconds
• Launch caliper inner diameter: ≥ 125 mm
• Reception sensitivity thresholds: power–ground ≤ 500 Ω; live–ground ≤ 200 Ω
• Operating temperature range: -35℃ to +55℃
• Maximum environmental humidity: ≤ 95% RH
• Protective case: high-strength ABS
• Case dimensions: 520 × 350 × 170 mm
