Digital phase detector TAG-8000

wireless

The TAG-8000 Wireless HV Phase Tester is a portable wireless device for identifying phase and phase sequence on high-voltage lines connected to the grid or the core conductor of ring networks. It provides qualitative (sound and light) and quantitative (real-time phase-angle difference) indications and is designed for safe, convenient field use.

Main features

• Wireless multi-mode HV phase detection for broad field applicability.
• Qualitative and quantitative indications: audible/visual signals plus real-time numeric phase-angle difference.
• Interactive user interface with configurable backlight and automatic shutdown settings.
• FCC antenna design and double shielding for improved signal strength and EMI resistance.
• Charting, numeric display and historical data browsing for easier analysis.
• Field-calibration function to maintain phase-angle accuracy.

Additional information

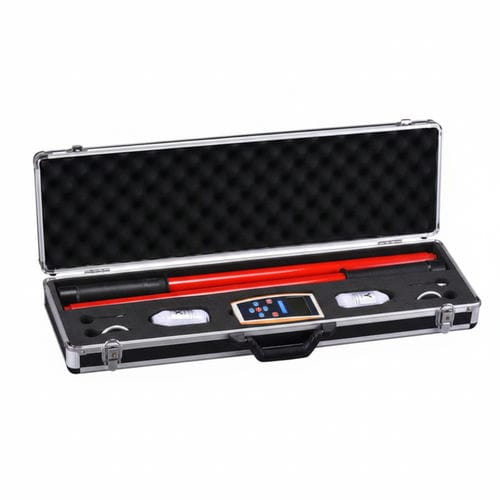

• Delivered as a handset (main unit) and two detectors (X and Y) for non-contact detection and wireless transmission.
• Intended to check whether two HV lines are in-phase or out-of-phase and to verify phase sequence (normal or reversed).
• Phase-sequence verification by 120° clockwise / 240° counterclockwise assessment.

Technical specifications

• Measurement voltage: 10 V – 220 kV (customizable).
• Power (handset): 2 × AA alkaline batteries (1.5 V).
• X detector power: 3 × AA alkaline batteries (1.5 V); Y detector power: 3 × AA alkaline batteries (1.5 V).
• Wireless transmission distance: ≤ 150 m (per detector).
• In-phase: phase-angle shift ≤ 20° (threshold adjustable 0–90°, system default 20°).
• Out-phase: phase-angle shift > 20° (threshold adjustable 0–90°, system default 20°).
• Display accuracy (quantitative): ≤ 5°.
• Phase-angle resolution: 1°.
• Display: LCD.
• Sampling speed: 10 times/s.
• Field calibration: available to ensure phase-angle accuracy.
• Backlight time settings: off or 0–999 seconds.
• Automatic shutdown: Never or 0–999 minutes (user setting).
• Operating temperature: -35 °C to +50 °C.
• Storage temperature: -40 °C to +55 °C.
• Relative humidity: ≤ 95% RH.
• Handset weight: ≈ 0.31 kg; X detector: ≈ 0.16 kg; Y detector: ≈ 0.16 kg.
