Capacitance tester UHV-525
for high-voltagepowerfrequency

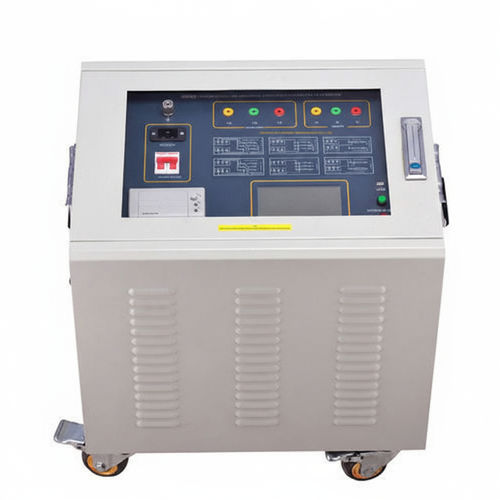

Capacitance tester - UHV-525 - Wuhan UHV Power Technology Co.,Ltd. - for high-voltage / power / frequency
Capacitance tester - UHV-525 - Wuhan UHV Power Technology Co.,Ltd. - for high-voltage / power / frequency
Capacitance tester - UHV-525 - Wuhan UHV Power Technology Co.,Ltd. - for high-voltage / power / frequency - image - 2
Add to favorites
Compare this product
Go to the Wuhan UHV Power Technology Co.,Ltd. website for more information

Characteristics

Test type
for high-voltage, power, capacitance, frequency
Tested product
for cables, for electrical equipment, electrically-driven
Applications
for power systems
Configuration
mobile
Other characteristics
digital, with LCD screen, with memory

Description

Overview

  • The UHV-525 Transmission Cable Parameter Tester is a field instrument for precision measurement of power-frequency parameters on high-voltage transmission lines (overhead, underground cable, hybrid). It measures capacitance, impedance, impedance angle and resistance and is suitable for tests under mains or generator-supplied conditions after outages.


Key features

  • Integrated compact design: consolidates functions that traditionally required multiple devices into a single portable housing for easier transport and field deployment.
  • Simple power requirements: operates from AC 220 V mains, avoiding the need for on-site 380 V connections.
  • Patented anti-induction circuit (patent no. 201020687669.X) for operation under high induced voltages (up to 10 kV) and enhanced immunity to induced currents.
  • Frequency conversion and digital filtering: selectable output frequency (45 Hz / 55 Hz) with digital filtering to reduce industrial frequency interference.
  • High-speed digital signal processor: fast, accurate processing of measurement signals and computations.
  • Minimal external wiring and straightforward operation: measure positive/zero sequence impedance and capacitance with reduced wiring and improved on-site safety.
  • Large-capacity data storage and export: calendar-stamped storage for up to 200 test sets and USB export for PC viewing and report generation.
  • Operational safety: automatic grounding detection that blocks operation if grounding is insufficient.
  • Large full-touch LCD: menu-driven interface for guided, one-touch measurement operations.


Technical specifications

  • Operating conditions: -20℃ ～ 50℃; relative humidity < 80%.
  • Anti-interference principle: frequency conversion with digital filtering.
  • Power supply: AC 220 V ± 10%; recommended generator ≥ 3 kW for generator-powered tests.
  • Maximum output voltage: AC 250 V.
  • Voltage accuracy: 0.5%.
  • Current accuracy: 0.5%.
  • Maximum output current: 8 A.
  • Output frequency: 45 Hz, 55 Hz.
  • Measuring ranges: capacitance 0.01 ~ 30 μF; impedance 0.01 ~ 400 Ω; impedance angle -90° ～ +90°.
  • Measurement resolution: capacitance 0.0001 μF; impedance 0.0001 Ω; impedance angle 0.0001°.
  • Measurement accuracy — capacitance: ≥ 1 μF: ±1% reading ±0.01 μF; < 1 μF: ±2% reading ±0.01 μF.
  • Measurement accuracy — resistance: ≥ 1 Ω: ±1% reading ±0.01 Ω; < 1 Ω: ±2% reading ±0.01 Ω.
  • Impedance angle accuracy: ±0.2° (voltage > 1.0 V); ±0.3° (voltage 0.2 V ～ 1.0 V).
  • Antijamming (anti-interference) current: 30 A.
  • Induced voltage tolerance: 10 kV.
  • Installation dimensions (L × W × H): 550 × 430 × 530 mm.
  • Memory: stores 200 sets; supports USB flash drive data export.
  • Weight: 60 kg.
  • Also referred to as: Cable Parameter Tester; Cable Tester.


Usage notes & delivery

  • Data export via USB for PC analysis and report generation; product gallery provides high-resolution images and multiple views.
  • For generator-supplied testing, use a generator ≥ 3 kW and verify supply stability before measurement.
  • Always perform grounding check before operation; the instrument will block operation if grounding is inadequate to protect personnel and equipment.
