Rubber-bonded ferrite magnetic sheet Adhesive Magnets

custom-madeplateroll

Adhesive Magnets are flexible rubber magnetic sheets and magnetic strips with an adhesive backing designed to attach items to ferrous metal surfaces. They are available in various thicknesses, sizes, magnetic energies and with different adhesive types laminated on the non-magnetized side.

Overview
Dexinmag's adhesive magnets include self-adhesive magnetic sheets and magnetic strips/extruded tapes with adhesive backing suitable for attaching paper, plastics, photos, labels or lightweight components to metal surfaces such as refrigerators or file cabinets.

Adhesive Magnetic Sheets

• Application: Flexible self-adhesive magnetic sheeting for general indoor use and heavier-duty outdoor options (adhesive types: water-based, solvent, rubber or foam laminated on the non-magnetized side).

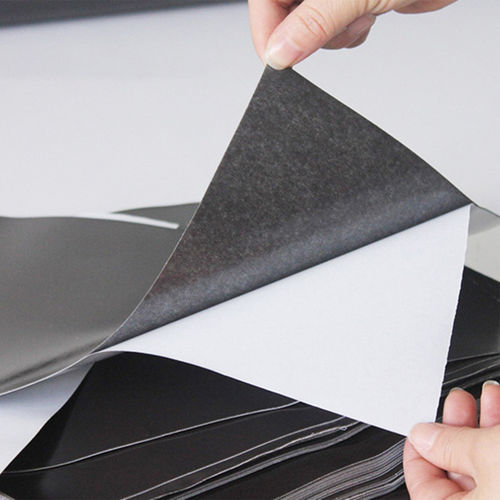

• Typical product image: https://img.website.xin/contents/sitefiles3608/18044478/images/10384034.jpg

Dimension of Self-adhesive magnetic sheet

• Magnet thickness: 0.4–8 mm
• Popular sizes: 500 × 310 mm; 600 × 900 mm; 297 × 210 mm; 1000 × 620 mm
• Special sizes: die-cut or kiss-cut custom sizes available for small shapes and parts

Magnetic properties of Self-adhesive magnetic sheet

• Isotropic (standard energy) — BR (GS): 1550–2100; HCB (Oe): 1100–1700; HCJ (Oe): 2000–3000; BH(max) (MGOe): 0.40–0.80
• Anisotropic (high energy) — BR (GS): 2200–2700; HCB (Oe): 1700–2500; HCJ (Oe): 2300–3500; BH(max) (MGOe): 1.21–1.60

Magnetic Strips with Adhesive Backing

• Product type: Extruded flexible magnetic strips with adhesive laminated on the non-magnetized side for mounting to metal surfaces; adhesive options include solvent, rubber or foam variants.
• Typical product image: https://img.website.xin/contents/sitefiles3608/18044478/images/10384033.jpg

Dimension of Magnetic strips with adhesive backing

• Standard sizes (examples): 30 m × 12.7 mm × 1.5 mm (100 ft × 0.5 in × 60 mil), 30 m × 19 mm × 1.5 mm (100 ft × 0.75 in × 60 mil), 30 m × 25.4 mm × 1.5 mm (100 ft × 1.0 in × 60 mil)
• Other sizes available on request.

Magnetic properties of Magnetic strips with adhesive backing

• Isotropic (Standard energy) — BH(max): 0.66–0.8 MGOe; BR: 1650–2100 GS; HCB: 1300–1700 Oe; HCJ: 2100–3000 Oe
• Anisotropic (High energy) — BH(max): 1.0–1.2 MGOe; BR: 2100–2400 GS; HCB: 1700–2000 Oe; HCJ: 2300–3200 Oe

Technical characteristics / specifications

• Product types: Self-adhesive magnetic sheets; magnetic strips/tape with adhesive backing (extruded magnetic strip).
• Magnet material: Flexible rubber magnet (isotropic or anisotropic grades offered).
• Thickness range (sheets): 0.4–8 mm.
• Sheet popular sizes: 500×310 mm; 600×900 mm; 297×210 mm; 1000×620 mm; custom die-cut available.
• Strip standard sizes (examples): 30 m rolls in widths 12.7 mm, 19 mm, 25.4 mm; thickness ~1.5 mm; other dimensions available.
• Magnetic performance ranges provided above (BR, HCB, HCJ, BHmax) for isotropic and anisotropic grades.
• Adhesive options: Water-based, solvent, rubber or foam adhesives laminated on the non-magnetized side.
