Magnetic powder DXF-5 series

Product overview

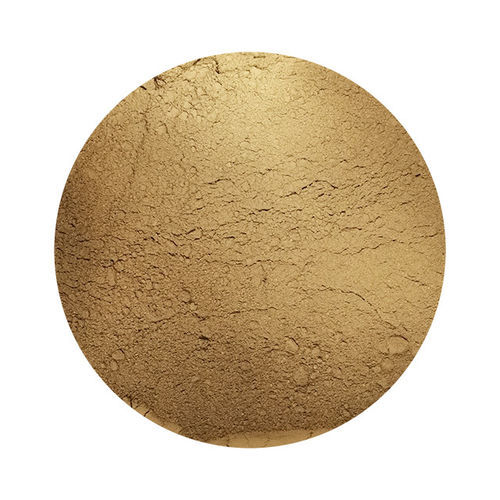

Magnetic Powder for Recording is a barium ferrite (BaFe12O19) based magnetic powder formulated for the preparation of magnetic cards and magnetic stripe products. It provides plate-like ferrite particles with narrow particle size distribution and stable temperature performance for reliable magnetic recording in stripe and ticket applications.

Applications

• Magnetic stripe credit cards
• Railroad tickets and season tickets
• Highway passes
• Telephone cards and prepaid railway cards

Product variants (from table)

• DXF-5 — Material: BaFe12O19; Br: 145±5 mT; Hcb: 103±5 kA/m; Hcj: 229±12 kA/m; (BH)max: 3.8±0.3 kJ/m3; APD: 3.8±0.3 µm; Density: 0.95±0.1 g/cm³.
• DXF-5C — Material: BaFe12O19; Br: 145±5 mT; Hcb: 107±5 kA/m; Hcj: 292±6 kA/m; (BH)max: 3.5±0.2 kJ/m3; APD: 3.5±0.2 µm; Density: 0.95±0.1 g/cm³.

Technical specifications

• Base material: barium ferrite (BaFe12O19).
• Particle morphology: plate-like ferrite particles suitable for magnetic recording layers.
• Key functional properties: appropriate coercive force, narrow particle size distribution and stable temperature performance for consistent magnetic recording.
• Typical end-uses: magnetic stripe cards and ticketing/access card formats.
