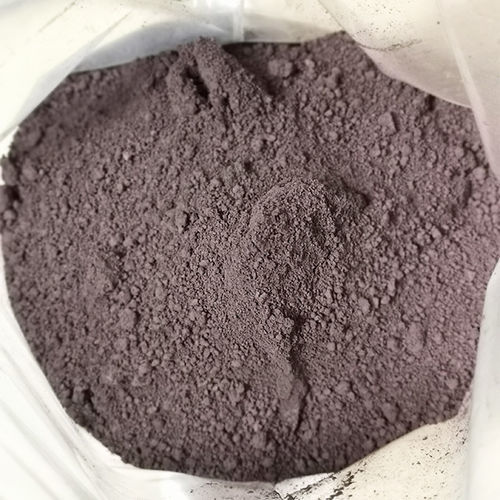

Magnetic powder DXS series

dry

Sintered permanent magnet ferrite powder is a high-performance material widely used in electronics, machinery, medical and other fields. It is produced from a mixture of ferrite, additives and other raw material powders; after molding and sintering it becomes a hard, tough permanent magnet material with stable magnetic properties.

Applications and advantages

• Applications: electronics, machinery, medical devices and general permanent magnet use cases where stable magnetic performance is required.
• Advantages: stable magnetic properties; high remanence, coercive force and magnetic energy product; cost-effective and suitable for mass production; long service life.

Types / Processing methods

• Dry pressing (anisotropic and isotropic): High-performance anisotropic magnetic powder for dry pressing can be used to manufacture arc magnets for motors, radially oriented and multipole oriented ring or cylindrical magnets, small-size thin products and comparatively intricate magnet shapes. Isotropic powder for dry pressing is mainly used in micro electrical motors, visual aids, sealing strips, etc.
• Wet pressed anisotropic ferrite powder: Used to manufacture sintered magnets for higher energy products, mainly for medium- and high-class speaker rings, NMR devices, household applications and automotive motors.

Caractéristiques / spécifications techniques

• Technical parameters are provided per product number (P/N). Each entry lists: Materials; Br (mT); bHc (KA/m); iHc (KA/m); (BH)max (KJ/m3); Shrinkage (%); Coarse Powder (m); Fine Powder (m).
• DXS-3 — Materials: BaFe12O19; Br: 380~400 mT; bHc: 151~167 KA/m; iHc: 155~171 KA/m; (BH)max: 27.1~30.3 KJ/m3; Shrinkage: 11.0~13.0 %; Coarse Powder: 3~6 m; Fine Powder: 0.8~1.00 m.
• DXS-4 — Materials: SrFe12O19; Br: 385~395 mT; bHc: 215~231 KA/m; iHc: 223~255 KA/m; (BH)max: 27.9~31.1 KJ/m3; Shrinkage: 12.0~14.0 %; Coarse Powder: 3~6 m; Fine Powder: 0.80~0.90 m.
• DXS-4BH — Materials: SrFe12O19; Br: 390~400 mT; bHc: 231~247 KA/m; iHc: 239~255 KA/m; (BH)max: 28.7~31.9 KJ/m3; Shrinkage: 12.0~14.0 %; Coarse Powder: 3~6 m; Fine Powder: 0.68~0.80 m.
• DXS-5 — Materials: SrFe12O19; Br: 400~410 mT; bHc: 223~239 KA/m; iHc: 223~255 KA/m; (BH)max: 30.3~33.5 KJ/m3; Shrinkage: 12.0~14.5 %; Coarse Powder: 3~6 m; Fine Powder: 0.68~0.80 m.
• DXS-5H — Materials: SrFe12O19; Br: 380~390 mT; bHc: 263~279 KA/m; iHc: 285~327 KA/m; (BH)max: 27.1~30.3 KJ/m3; Shrinkage: 12.0~14.0 %; Coarse Powder: 3~6 m; Fine Powder: 0.68~0.80 m.
• DXS-5BH — Materials: SrFe12O19; Br: 400 mT; bHc: 239 KA/m; iHc: 247 KA/m; (BH)max: 29.7* KJ/m3; Shrinkage: 11.5~14.5* %; Coarse Powder: 3~6 m; Fine Powder: 0.68~0.80 m.
• DXS-5U — Materials: SrFe12O19; Br: 345~355 mT; bHc: 247~263 KA/m; iHc: 374~406 KA/m; (BH)max: 21.5~24.7 KJ/m3; Shrinkage: 11.5~13.5 %; Coarse Powder: /; Fine Powder: 0.68~0.80 m.
• DXS-5.2 — Materials: SrFe12O19; Br: 395~405 mT; bHc: 247~263 KA/m; iHc: 247~279 KA/m; (BH)max: 29.5~32.7 KJ/m3; Shrinkage: 12.5~14.5 %; Coarse Powder: /; Fine Powder: 0.68~0.80 m.
• DXS-5.3 — Materials: SrFe12O19; Br: 405~415 mT; bHc: 207~223 KA/m; iHc: 211~227 KA/m; (BH)max: 30.3~33.5 KJ/m3; Shrinkage: 12.5~14.5 %; Coarse Powder: /; Fine Powder: 0.68~0.80 m.
• DXS-5.5 — Materials: SrFe12O19; Br: 405 mT; bHc: 215 KA/m; iHc: 220* KA/m; (BH)max: 31.0* KJ/m3; Shrinkage: 11.5~14.5* %; Coarse Powder: 3~6 m; Fine Powder: (not specified).
• DXS-6 — Materials: SrFe12O19; Br: 403 mT; bHc: 243 KA/m; iHc: 258 KA/m; (BH)max: 30.6 KJ/m3; Shrinkage: 11.5~13.5 %; Coarse Powder: 2~5 m; Fine Powder: (not specified).
• DXS-6H — Materials: SrFe12O19; Br: 390~400 mT; bHc: 279~295 KA/m; iHc: 302~334 KA/m; (BH)max: 29.5~31.1 KJ/m3; Shrinkage: 11.0~13.0 %; Coarse Powder: /; Fine Powder: 0.65~0.75 m.
• DXS-6U — Materials: SrFe12O19; Br: 360~370 mT; bHc: 267~283 KA/m; iHc: 366~398 KA/m; (BH)max: 24.7~26.3 KJ/m3; Shrinkage: 10.5~12.5 %; Coarse Powder: /; Fine Powder: 0.65~0.75 m.
• DXS-7B — Materials: SrFe12O19; Br: 410~430 mT; bHc: 276~300 KA/m; iHc: 306~330 KA/m; (BH)max: 31.8~35 KJ/m3; Shrinkage: 10.5~12.5 %; Coarse Powder: /; Fine Powder: 0.65~0.75 m.
• DXS-7H — Materials: SrFe12O19; Br: 390~410 mT; bHc: 290~314 KA/m; iHc: 346~370 KA/m; (BH)max: 28.7~31.9 KJ/m3; Shrinkage: 10.5~12.5 %; Coarse Powder: /; Fine Powder: 0.65~0.75 m.
• DXS-7U — Materials: SrFe12O19; Br: 370 mT; bHc: 268* KA/m; iHc: 383 KA/m; (BH)max: 26.3* KJ/m3; Shrinkage: 10.5~12.5 %; Coarse Powder: /; Fine Powder: 0.65~0.75 m.
