Chamfering tool DXMC series

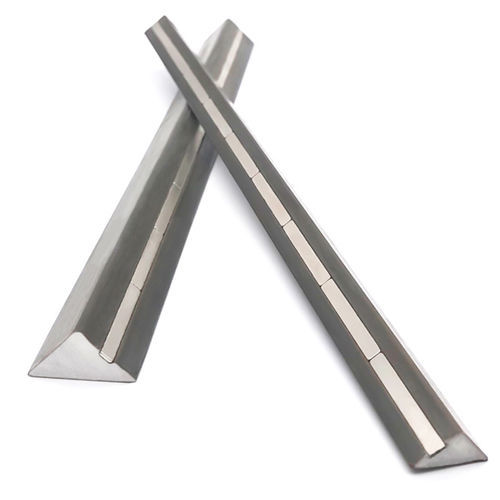

Magnetic Steel Chamfer is a magnetic chamfer bar using a strong magnet embedded in a triangular steel body to hold firmly on steel surfaces. It is designed for quick, accurate placement in steel mold structures, reducing labor and material usage compared with wooden chamfer solutions.

Key features:

• Lightweight: made with rubber magnetic material for easy handling and installation.
• Flexible: can bend to fit various mold shapes.
• Easy fixing: magnets enable quick attachment to molds without additional tools.
• Customizable: different sizes and configurations available to meet diverse production needs.

Models and dimensions:

• DXMC-10A — L: 10, W: 10, H: 14, Length(mm): 3000, Percentage: 50% / 100%, Amount: One
• DXMC-10B — L: 10, W: 10, H: 14, Length(mm): 3000, Percentage: 50% / 100%, Amount: Two
• DXMC-15A — L: 15, W: 15, H: 21, Length(mm): 3000, Percentage: 50% / 100%, Amount: One
• DXMC-15B — L: 15, W: 15, H: 21, Length(mm): 3000, Percentage: 50% / 100%, Amount: Two
• DXMC-20A — L: 20, W: 20, H: 28, Length(mm): 3000, Percentage: 50% / 100%, Amount: One
• DXMC-20B — L: 20, W: 20, H: 28, Length(mm): 3000, Percentage: 50% / 100%, Amount: Two
• DXMC-25A — L: 25, W: 25, H: 35, Length(mm): 3000, Percentage: 50% / 100%, Amount: One
• DXMC-25B — L: 25, W: 25, H: 35, Length(mm): 3000, Percentage: 50% / 100%, Amount: Two

Technical specifications:

• Series: DXMC series (models DXMC-10A/B, DXMC-15A/B, DXMC-20A/B, DXMC-25A/B).
• Construction: triangular steel chamfer body with embedded strong magnet; magnetic component described as rubber magnetic material for lightweight and flexibility.
• Standard length: 3000 mm.
• Percentage / finish options: 50% or 100%.
• Typical applications: placement and holding on steel mold structures for chamfering; reduces issues related to wooden chamfers.
• Customization: available in different sizes and configurations to meet production needs.
