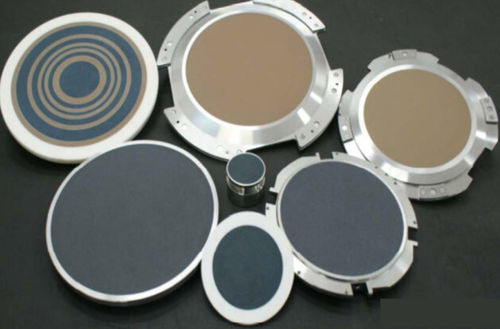

Ceramic vacuum chuck

Introduction: Porous ceramics are ceramic materials featuring a controlled fine pore network. They are used where distributed air permeability, thermal stability and mechanical strength are required. Porous ceramic vacuum chucks provide vacuum adsorption for secure, repeatable handling of parts in industrial processes.

Performance characteristics:

• High specific surface area: increases effective adsorption area and improves vacuum grip consistency.
• High temperature resistance: suitable for elevated-temperature processes due to high melting point.
• Chemical corrosion resistance: stable in contact with many process media.
• Wear resistance: material hardness supports long service life under sliding or contact conditions.

Manufacturing process: Production typically includes powder mixing, shaping/molding of green bodies, controlled drying, high-temperature sintering and final machining. Molding and sintering determine the porous network and mechanical characteristics required for each chuck type.

Application areas:

• Industrial automation: vacuum handling on automated lines for fast, precise transfer and placement (examples: automotive assembly, electronics manufacturing, food processing).
• Medical equipment: fixation and transfer of instruments or components where controlled, clean gripping is required (examples: surgical instrument handling, dialysis device components).
• Aerospace: surface cleaning, sample handling in laboratory or space applications, and logistics transfer on platforms where non-mechanical gripping is preferred.

Future development:

• Material optimization: development of new formulations and pore architectures to tailor permeability and strength.
• Application expansion: integration into robotics, marine engineering and other sectors requiring non-damaging gripping.
• Intelligent control: integration with sensors and control systems for adaptive vacuum management and process monitoring.

Categories of vacuum chucks:

• Thinning chucks
• Dicing suction chucks
• Cleaning suction chucks
• Printing suction chucks
• Carrying/transportation chucks

Compatible machine models (examples):

• DFG8540
• 7AF-II
• DAS321 / DAD341
• DAD3350
• ADT7100
• A-WD-100A

Structure of vacuum suction chucks: The chuck is formed from a porous ceramic body that creates distributed channels for air flow and vacuum adsorption. The pore network, defined during molding and sintering, is engineered to balance permeability and mechanical support for specific handling tasks.

Technical specifications:

• Materials: alumina (Al2O3) and silicon carbide (SiC) porous ceramics.
• Key properties: controlled porosity, high air permeability, large specific surface area, thermal stability, mechanical strength, chemical and wear resistance.
• Manufacturing steps: mixing; shaping/molding; drying; high-temperature sintering; post-processing and machining.
• Primary application fields: industrial automation, medical equipment, aerospace; potential expansion to robotics and marine engineering.
• Product categories: thinning, dicing, cleaning, printing and transportation chucks.
• Known compatible models: DFG8540; 7AF-II; DAS321/DAD341; DAD3350; ADT7100; A-WD-100A.
