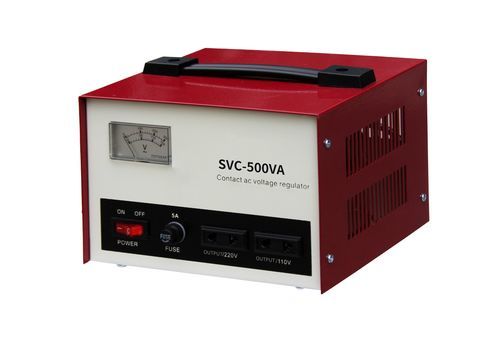

AC voltage regulator SVC seriessingle-phasefor medical applicationsfor energy saving
Add to favorites
Compare this product
Characteristics
- Options
- AC, single-phase
- Applications
- for medical applications, for telecommunication equipment, for energy saving, for monitors
- Other characteristics
- automatic, adjustable, electronic, low-loss
- Power in kVA
Min.: 0.5 kVA
(0.68 hp)Max.: 50 kVA
(67.98 hp)
Description
Product Details
The SVC series single-phase high-precision automatic AC voltage regulator consists of a contact autotransformer, servo motor, and automatic control circuit. When grid voltage is unstable or load changes, it automatically and quickly adjusts the output voltage to the rated value (220V±3%) with a response time of <1 second. Featuring no waveform distortion, high efficiency (>98%), and long-term operation capability, it offers comprehensive protection functions including time delay, overvoltage, and undervoltage protection, suitable for various applications requiring stable voltage.
Features
Caractéristiques / Spécifications techniques
The SVC series single-phase high-precision automatic AC voltage regulator consists of a contact autotransformer, servo motor, and automatic control circuit. When grid voltage is unstable or load changes, it automatically and quickly adjusts the output voltage to the rated value (220V±3%) with a response time of <1 second. Featuring no waveform distortion, high efficiency (>98%), and long-term operation capability, it offers comprehensive protection functions including time delay, overvoltage, and undervoltage protection, suitable for various applications requiring stable voltage.
Features
- High-precision voltage stabilization, output 220V±3%
- Fast response, adjustment time <1 second
- High efficiency operation, efficiency >98%
- No waveform distortion
- Complete protection functions (over/undervoltage, delay)
- Wide input voltage range (150V-264V)
Caractéristiques / Spécifications techniques
- Type: Voltage Regulator / Voltage Stabilizer
- Model: SVC
- Phase number: Single
- Rated capacity: 500VA ~ 50kVA
- Input Voltage: 150~250V (SVC-500VA~10kVA), 176~264V (SVC-15kVA~50kVA)
- Output Voltage: 220V±3%, 110V±3%
- Frequency: 50/60Hz
- Efficiency: >98%
- Adjusting Time: <1 second (When input voltage changes by 10%)
- Protection: Overvoltage (246V±4V), Undervoltage, Time Delay
- Operating Temperature: -5 ~ 40
- Relative Humidity: <90%RH (non-condensing)
- Waveform distortion: No additional waveform distortion
