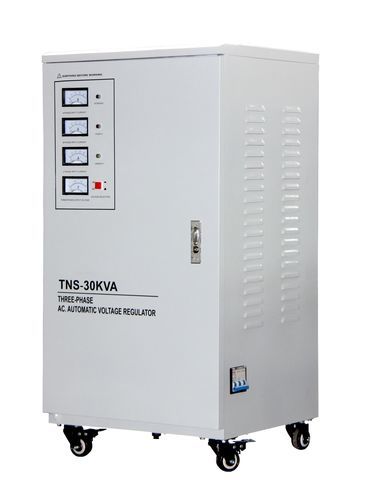

AC voltage regulator TNS seriesthree-phasefor medical applicationsfor automotive applications
Add to favorites
Compare this product
Characteristics
- Options
- AC, three-phase
- Applications
- for medical applications, for telecommunication equipment, for automotive applications, for energy saving, for monitors
- Other characteristics
- automatic, adjustable, electronic, low-loss, network stabilizing
- Power
Max.: 100 kW
(135.96 hp)Min.: 6 kW
(8.16 hp)- Power in kVA
Max.: 100 kVA
(135.96 hp)Min.: 6 kVA
(8.16 hp)
Description
Product Details
The TNS series high-precision automatic three-phase AC voltage regulator consists of three single-phase SVC regulators, employing three-phase independent regulation to ensure voltage stability for each phase. With three-phase four-wire star connection input and configurable three-phase four-wire/three-wire output, it features three ammeters for phase current monitoring and a voltage meter with change-over switch for line voltage detection. Units above 20kVA use autotransformer design, offering fast response (<1 second), high efficiency (>98%), and no waveform distortion, suitable for three-phase equipment voltage stabilization.
Features
Operating Conditions
Characteristics / Technical Specifications
The TNS series high-precision automatic three-phase AC voltage regulator consists of three single-phase SVC regulators, employing three-phase independent regulation to ensure voltage stability for each phase. With three-phase four-wire star connection input and configurable three-phase four-wire/three-wire output, it features three ammeters for phase current monitoring and a voltage meter with change-over switch for line voltage detection. Units above 20kVA use autotransformer design, offering fast response (<1 second), high efficiency (>98%), and no waveform distortion, suitable for three-phase equipment voltage stabilization.
Features
- Three-phase independent regulation for voltage stability
- Wide input voltage range (270V-456V)
- High-precision output 380V±3%
- Fast response, adjustment time <1 second
- High efficiency >98%, energy saving
- Flexible three-phase four-wire/three-wire output
Operating Conditions
- Protection Level: IP20 (indoor installation)
- Operating Temperature: -5 ~ 40
- Relative Humidity: <90%RH (non-condensing)
- Installation Altitude: <1000m
Characteristics / Technical Specifications
- Type: Voltage Regulator
- Model: TNS
- Phase number: Three
- Rated voltage: 6kVA~100kVA
- Input voltage: 270V~456V
- Output voltage: 380V±3%
- Frequency: 50/60Hz
- Adjusting time: 1 second, (When input voltage changes by 10%)
- High efficiency: >98%
- Operating Temperature: -5 ~ 40
- Relative Humidity: <90%RH
- Waveform distortion: No additional waveform distortion
