EtherCAT coupler LC3-AP

I/OcompactPLC

Overview

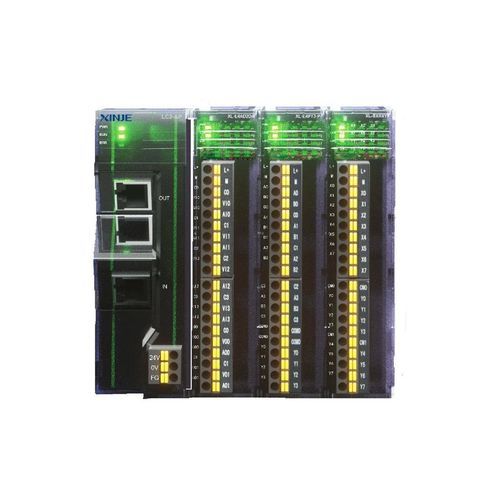

The L series remote I/O system pairs the Xinje EtherCAT communication coupler LC3-AP with XL or LL series I/O modules to form flexible distributed I/O solutions. The system supports configurable combinations of module types and quantities to meet varied automation requirements while maintaining a compact footprint for cabinet- and panel-mounted installations.

Product features

• Card-based expansion for modular configuration.
• Compact mechanical design to save installation space.
• Direct insertion terminals for fast, reliable wiring.
• Network-port firmware upgrade capability.
• Supports expansion up to 16 I/O modules.
• 45° angled mesh design to reduce mesh stress and improve reliability.
• Seamless compatibility with mainstream PLC master stations.

Notes / Applications

• The LC3-AP EtherCAT communication coupler is combined with XL or LL series modules to build remote I/O racks.
• Different module types and quantities can be mixed to address discrete I/O, analog, and specialty signal needs in industrial automation.

Technical specifications

• Product family: L series communication coupler
• Expansion method: card-based expansion
• Maximum expandable modules: 16 I/O modules
• Wiring: direct insertion terminal
• Firmware: network-port firmware upgrade supported
• Mechanical design: compact structure; 45° angled mesh design to reduce mesh stress
• Compatibility: compatible with mainstream PLC master stations
