I/O expansion module XD series

digital inputmodularanalog

Overview

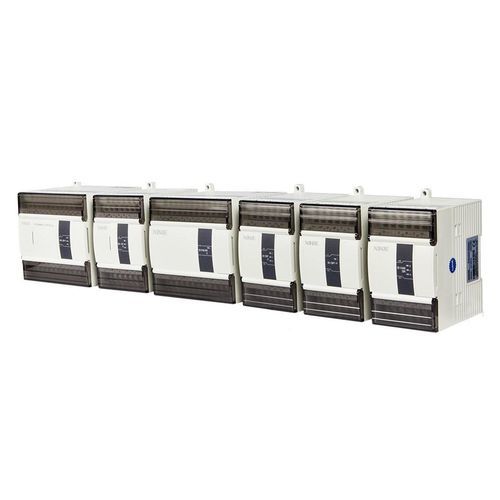

The XD series right expansion module interfaces with XD series base units to extend I/O capacity and add specialized functions. Available module types include digital I/O expansion, analog input/output, temperature control (per-channel PID with self-tuning), weighing measurement and encoder detection. The modular architecture supports flexible combinations for industrial process-control applications.

Key points

• Compatible with XD series base units
• Up to 16 right expansion modules per base unit (depending on configuration)
• Expandable to a maximum of 592 I/O points
• Module range covers temperature, flow, level, pressure, weighing, analog I/O and encoder detection

Temperature control module
Each channel provides independent PID control with self-tuning to simplify commissioning and improve regulation accuracy in multi-loop processes.

Weighing module
Supports dynamic and static weighing modes with compact form factor and stable signal processing; suitable for dosing, batching and weight monitoring in seeds, chemicals, grains and feed lines.

Application scenarios
Designed for process control and monitoring systems that require extended I/O and specialist modules such as multi-loop temperature control, integrated weighing, analog signal acquisition and encoder feedback for position/speed monitoring.

Technical specifications

• Series: XD series right expansion module
• Compatibility: XD series base units
• Maximum right expansion modules per base unit: up to 16
• Maximum I/O points after expansion: up to 592 points
• Available module types: digital I/O expansion, analog input, analog output, temperature control, weighing measurement, encoder detection
• Temperature module features: per-channel PID control, self-tuning supported
• Weighing module features: dynamic weighing support, compact form factor
