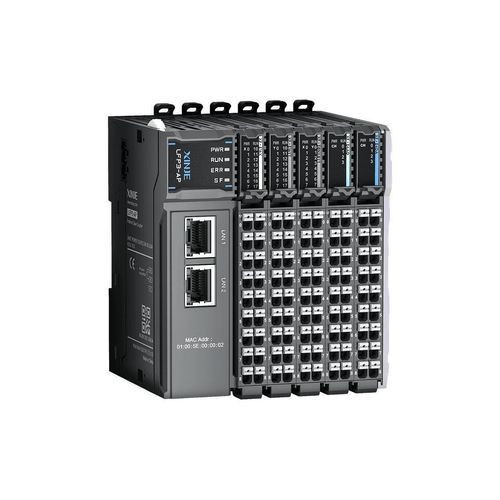

Ethernet coupler LF series

EtherCATProfiNetbus

Overview
The LF series distributed I/O system consists of the LF series communication coupler and XF series modules. A high-speed backplane bus between the coupler and modules enables microsecond-level response, making the system suitable for high-speed, high-precision control and data-acquisition applications. The modular range supports combined configurations to meet diverse customer needs.

Product Features

• High real-time performance with a compact form factor.
• High-speed backplane bus between coupler and modules for microsecond-level response.
• Support for diverse module combinations to address varied application requirements.

Models and Key Capabilities
LFC3-AP — EtherCAT distributed I/O

• Compact design to save installation space.
• Supports precise control with minimum DC synchronization period of 250 µs.
• Network port supports cascading of multiple nodes and step-by-step firmware updates.
• Hardware static station number setting for quick configuration.
• Microsecond-level response via the high-speed backplane bus.
• Multiple diagnostic methods for rapid fault location and analysis.
• Supports up to 32 modules.

LFP3-AP — PROFINET distributed I/O

• Supports RT and IRT communication modes.
• Supports MRP and MRPD redundancy for applicable scenarios.
• Meets precise control needs with minimum synchronization period of 1 ms.
• Multiple diagnostic methods for fast fault analysis.
• Compatible with Siemens and TIA Portal.
• Firmware upgrade via network port supported.
• Supports up to 32 modules.

LFM3-AP — Modbus TCP distributed I/O

• Blade-style expansion enabling diversified combinations.
• Hardware IP address setting for convenient configuration.
• High-speed backplane bus with microsecond-level response.
• Multiple diagnostic methods for quick fault location and analysis.
• Firmware upgrade via network port supported.
• Supports up to 32 modules.

LFI3-AP — EtherNet/IP distributed I/O

• Compact design to optimize installation space.
• Implicit communication-based operation for straightforward integration.
• Hardware-assigned IP address support for easy configuration.
• High-speed backplane bus with microsecond-level response.
• Multiple diagnostic methods for rapid fault analysis.
• Firmware upgrade via network port supported.
• Supports up to 32 modules.

Related Products

• L series communication coupler (related series)

Technical specifications

• Series: LF series communication coupler
• Backplane bus: High-speed backplane bus between coupler and modules
• Max modules supported: Up to 32 modules (depends on model)
• EtherCAT (LFC3-AP) minimum DC sync: 250 µs
• PROFINET (LFP3-AP) minimum sync period: 1 ms; supports RT and IRT
• Redundancy: PROFINET supports MRP and MRPD
• Network features: Node cascading, firmware upgrade via network port (model dependent)
• Configuration: Hardware static station number setting / hardware IP address setting (model dependent)
• Diagnostics: Multiple fault diagnosis methods for rapid fault location and analysis
• Compatibility: LFP3-AP compatible with Siemens and TIA Portal
