I/O expansion module XL series

modularcompact-sizeindustrial

Overview

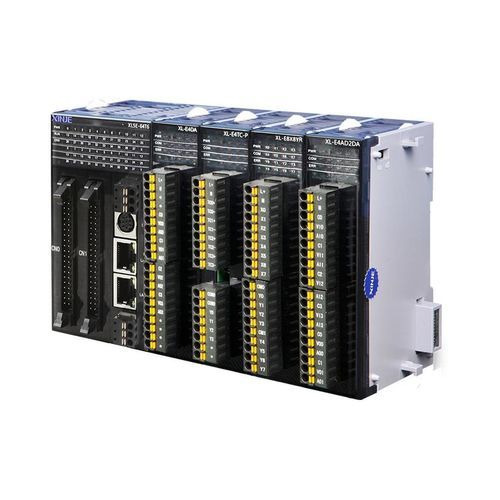

Right-side expansion module for XL series base units. Also usable as remote modules when paired with L series communication couplers. A wide range of module types addresses diverse application requirements. Each base unit supports 10 to 16 right-side expansion modules; an L series coupler can connect up to 16 XL modules.

Key features

• Compatible with XL series base units
• 10–16 right-side expansion modules per base unit
• Expanded system can reach up to 576 I/O points
• Supported as remote I/O when used with L series communication couplers
• Multiple module types available for different functions (I/O, temperature control, weighing, etc.)

Application scenarios

• Process control: temperature, flow, level, pressure monitoring and control
• Distributed control systems using remote I/O topology
• Integration into machine automation and plant monitoring architectures

Temperature control module

• Per-channel PID control
• Auto-tuning (self-tuning) support to simplify commissioning
• Designed for multi-zone temperature regulation in industrial processes

Weighing module

• Dynamic weighing capability for batch and continuous processes
• Compact footprint with stable performance across temperature ranges
• User-friendly configuration for weighing and dosing applications (seeds, chemicals, grains, feed)

Technical specifications

• Series: XL series right-side expansion module
• Compatibility: XL series base units and L series communication couplers
• Expansion capacity: 10–16 right-side expansion modules per base unit
• Maximum I/O points per expanded base unit: up to 576 points
• Remote connection: up to 16 XL modules per L series coupler
• Temperature control: per-channel PID with auto-tuning support
• Weighing: dynamic weighing, compact design, temperature-stable performance
