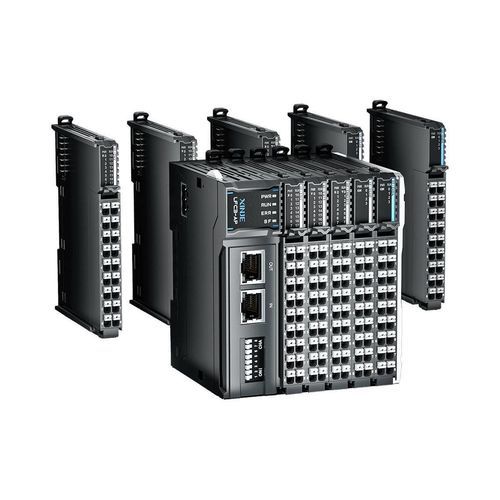

Analog I/O module XF-E2COM24

ProfiNetEtherCATmulti-channel

Product overview
With a variety of module types, an ultra-thin 12 mm (1U) blade design and proven reliability, the XF series blade I/O module provides stable connections, low-latency real-time performance, simplified installation and easier maintenance. It can operate as a local right-side expansion module when mounted on an XF series base unit or be connected via an LF series communication coupler for remote I/O operation. Supports up to 32 modules per body/coupler.

Higher response for precision control

• 200M high-speed backplane bus for robust high-speed data transmission.
• Analog 16-bit resolution with maximum error 0.2% and single-channel conversion time 60 µs for precise control.
• Digital microsecond-level response for real-time acquisition of excitation signals.
• Data transfer cycles executed in microseconds to meet high-speed, high-precision control requirements.

Ultra thin body

• Blade-type structural design with module thickness of 12 mm (1U).
• Compared with XL series modules, reduces installation footprint by approximately 50%.

Rich module types

• Body and coupler support connection of up to 32 expansion modules.
• Available I/O module types: digital, analog, temperature, communication, process, pulse and others.

High reliability

• Clip-on high-speed backplane communication connector for stable connections and improved overall reliability and real-time communication.

Tool-free installation, simpler wiring

• Uses PUSH IN terminals for faster, tool-free wiring.

Detachable terminal block

• Detachable terminal block enables replacing modules of the same model without disconnecting wiring, reducing maintenance time.

Specifications

• High-speed backplane bus: 200M
• Analog resolution: 16 bit
• Analog maximum error: 0.2%
• Single-channel conversion speed: 60 µs
• Digital microsecond-level response and microsecond data transfer cycles
• Module thickness: 12 mm (1U)
• Supports up to 32 expansion modules per body/coupler
• IO model types: digital, analog, temperature, communication, process, pulse
• Connection: clip-on high-speed backplane communication connector
• Wiring: PUSH IN terminals (tool-free)
• Maintenance: detachable terminal block for hot-swap of same-model modules
