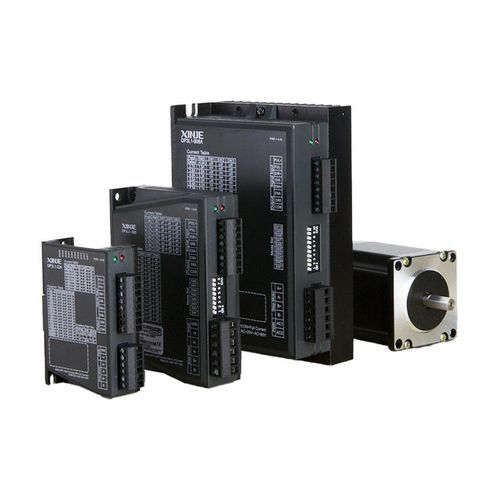

Stepper motor driver DP3L1

low-voltage

Product overview
The DP3L1 series open-loop pulse stepper driver is designed for small and medium automation equipment and instruments, including pneumatic marking machines, labeling machines, cutting machines, laser marking systems, plotters, small engraving machines, CNC machine tools and handling systems. It delivers low vibration, low noise, precise positioning and high-speed operation suitable for compact devices.

Key selling point
High output torque, fast response, stable operation and low temperature rise

Product features

• Selectable IO mode via rotary switch for dual-use configurations
• Simple control without a host computer: switch signals for start/stop and direction; external potentiometer for speed adjustment
• Pulse and direction inputs accept 5–24V signals for flexible integration
• Adjustable filtering time via dial for smoother motion and improved speed performance

Applications

• Pneumatic marking machines
• Labeling machines
• Cutting machines
• Laser marking systems
• Plotters and small engraving machines
• CNC machine tools
• Handling devices and other small/medium automation equipment

Technical specifications

• Series: DP3L1 (open-loop pulse stepper driver)
• IO mode: rotary-switch selectable (dual-use)
• Control: switch signals (start/stop/direction), external potentiometer (speed)
• Pulse & direction input voltage: 5–24V
• Filtering time: adjustable by dial for smoother/faster operation
• Designed for low vibration, low noise, precise positioning and high-speed use
