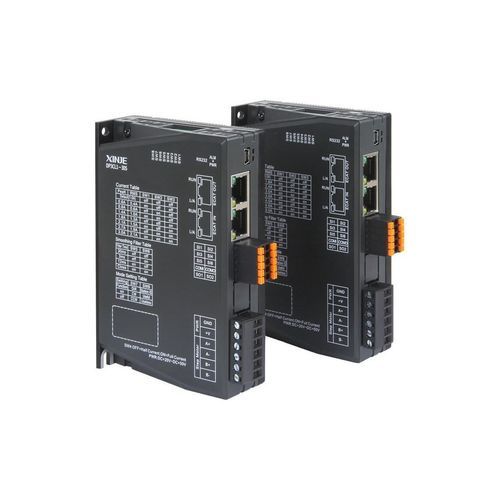

Stepper motor driver DP3CL1

Product overview
The DP3CL1 series is an open-loop EtherCAT stepper motor driver compliant with the CiA402 standard and supporting COE (CANopen over EtherCAT). It is designed for multi-axis control and supports up to 32 axes with a master-slave communication cycle reaching up to 1 ms for 32 axes. The series targets applications such as electronics manufacturing, laser systems, wire stripping/cabling machines, marking machines and plotters. The updated control algorithm improves dynamic performance, motor smoothness and reduces temperature rise.

Product features

• New-generation control algorithms — improved dynamic response and smoother motor operation with reduced temperature increase.
• EtherCAT integration for high-speed communication — supports COE protocol and CiA402 standard; compatible with standard EtherCAT master/slave setups and up to 32 axes with communication cycles down to 1 ms.
• Simplified wiring and maintenance — network cable replaces traditional pulse/direction wiring; includes power and encoder lines to reduce cabling and installation effort.
• Enhanced reliability and EMI resistance — EtherCAT backbone with low bus load and point-to-point physical layer improves system robustness against interference.
• Flexible I/O — configurable 6 signal inputs and 2 signal outputs for probe, positive/negative limits, origin, alarm, brake, etc., to meet varied application needs.
• Adaptive real-time current control — current adjusts according to load and speed for smoother running and lower motor heating; supports peak speeds up to 2000 rpm when used with EtherCAT and the latest algorithm.

Applications

• Electronics manufacturing equipment
• Laser devices and systems
• Wire stripping and cabling machines
• Marking machines, plotters and other multi-axis equipment

Technical specifications

• Model: DP3CL1
• Protocol: COE (CANopen over EtherCAT) support
• Standard compliance: CiA402
• EtherCAT: supports standard EtherCAT master/slave
• Axis support: up to 32 axes
• Communication cycle: up to 1 ms for 32 axes (master-slave)
• Control algorithm: new-generation algorithm for improved smoothness and thermal performance
• Peak motor speed capability: up to 2000 rpm (with EtherCAT & latest algorithm)
• I/O: configurable 6 signal inputs and 2 signal outputs (probe, limit, origin, alarm, brake, etc.)
• Wiring: network cable replaces traditional pulse/direction lines; includes power and encoder lines
• Functionality: real-time current adjustment according to load and speed
