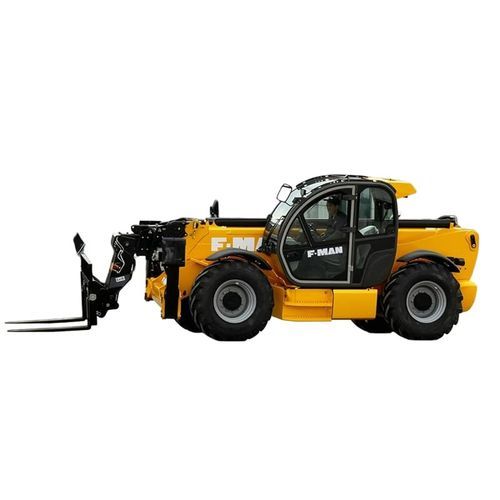

Telehandler with combustion engine FM8518

long-reachcompactmanoeuvrable

Product overview
The FM8518 telehandler is engineered for aerial access and heavy-load handling in industrial and construction environments. Fitted with a Cummins 3.9 L engine rated at 93 kW and an optimized chassis with a 3,120 mm wheelbase, it offers stable operation, precise control and compact footprint for confined or complex job sites.

Key features

• High lifting capability: maximum lifting capacity 5,000 kg
• Extended reach: maximum lift height 17.65 m and maximum outreach 13.1 m
• Powertrain: Cummins 3.9 L engine, rated power 93 kW
• Compact dimensions: overall 6,300 × 2,440 × 2,700 mm for operation in restricted spaces
• Stable chassis: 3,120 mm wheelbase and vehicle weight 12,200 kg for secure handling
• Precise boom control: smooth extension/retraction for safe and efficient positioning

Recommended applications

• Personnel/platform handling and work-at-height operations
• Heavy material lifting, long-reach loading/unloading and yard logistics
• Tasks requiring stability and precision in limited-space environments

Technical specifications

• Model: FM8518
• Engine model: Cummins
• Rated power: 93 kW
• Displacement: 3.9 L
• Maximum lifting height: 17,650 mm (17.65 m)
• Maximum outreach: 13,100 mm (13.1 m)
• Maximum lifting capacity: 5,000 kg
• Overall dimensions (L × W × H): 6,300 × 2,440 × 2,700 mm
• Wheelbase: 3,120 mm
• Vehicle weight: 12,200 kg
