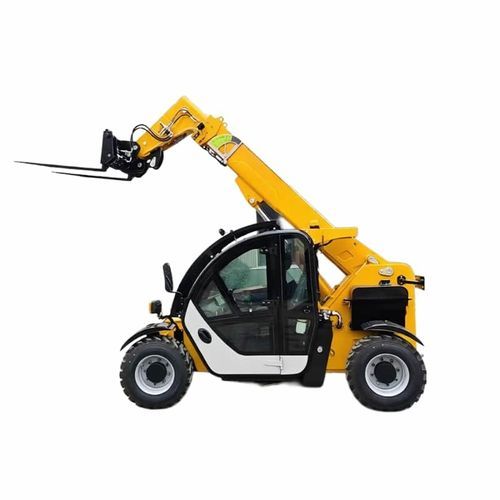

Long-reach telehandler FM8256

compactmanoeuvrablehigh payload

Overview
The FM8256 telescopic handler provides a 2.5 t payload in a compact footprint, designed for construction sites, warehousing & logistics, landscaping and municipal works. Reinforced frame and a straightforward layout support stable operation and simplify maintenance access.

Powertrain and performance
Equipped with a Kubota engine rated 55 kW (3.33 L), the FM8256 delivers reliable continuous power for intensive cycles. The telescopic boom offers a maximum lifting height of 5850 mm, maximum outreach of 3430 mm and a maximum lifting capacity of 2500 kg, enabling efficient high-level loading, unloading and stacking tasks.

Dimensions and ergonomics
Compact overall dimensions (3940 × 1830 × 1960 mm), wheelbase 2300 mm and operating weight 5820 kg ensure manoeuvrability in confined areas. The boom allows precise positioning to reduce operator effort and improve task productivity. The machine is suitable for construction, warehouse handling, agricultural operations and municipal maintenance, with a design aimed at high availability and controlled maintenance costs.

Specifications (table)
ITEM — UNIT — FM8256
Engine model — — Kubota
Rated Power — kW — 55
Displacement — L — 3.33
Max.Lifting Height — mm — 5850
Max. Outreach — mm — 3430
Max Lifting Capacity — kg — 2500
Maximum overall dimensions (Length × Width × Height) — mm — 3940*1830*1960
Wheel base — mm — 2300
Vehicle weight — kg — 5820

Applications

• Construction sites
• Warehousing and logistics
• Landscaping
• Municipal works
• Farm operations

Features / Technical specifications

• Model: FM8256 telescopic handler
• Payload / Max lifting capacity: 2500 kg (2.5 t)
• Engine: Kubota, 55 kW, 3.33 L
• Maximum lifting height: 5850 mm
• Maximum outreach: 3430 mm
• Overall dimensions (L×W×H): 3940 × 1830 × 1960 mm
• Wheelbase: 2300 mm
• Operating weight: 5820 kg
• Design highlights: compact footprint, reinforced frame, telescopic boom for precise operation, low maintenance orientation
