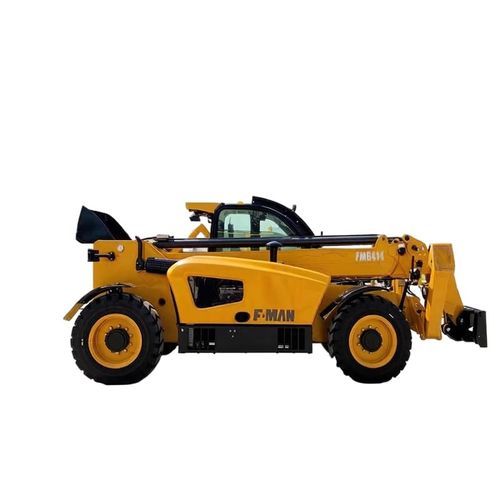

Telehandler with combustion engine FM8414

long-reachcompacthigh payload

Product overview
The FM8414 telehandler is engineered for aerial work and heavy material handling in construction sites, logistics hubs and industrial yards. Fitted with a Cummins 3.9 L engine (93 kW), it supplies stable power for continuous operation and load variations. Its optimized chassis, 3070 mm wheelbase and compact overall dimensions (6080 × 2440 × 2680 mm) support stable travel and reliable work in confined areas.

Specifications (table)
ITEM | UNIT | FM8414
Engine model | — | Cummins
Rated Power | kW | 93
Displacement | L | 3.9
Max. Lifting Height | mm | 13650
Max. Outreach | mm | 9220
Max Lifting Capacity | kg | 4000
Maximum overall dimensions (Length × Width × Height) | mm | 6080 × 2440 × 2680
Wheel base | mm | 3070
Vehicle weight | kg | 12050

Key features / benefits

• Cummins 3.9 L engine (93 kW) for consistent power delivery
• Telescopic boom with 13.65 m maximum lift and 9.22 m working radius for extended reach
• 4,000 kg maximum lifting capacity for heavy material handling
• Compact overall dimensions for operation and transport in confined spaces
• Optimized chassis and 3070 mm wheelbase for stable travel and work

Technical specifications

• Model: FM8414 telehandler
• Engine model: Cummins 3.9 L, 93 kW
• Rated power: 93 kW
• Displacement: 3.9 L
• Max. lifting height: 13,650 mm (13.65 m)
• Max. outreach: 9,220 mm (9.22 m)
• Max. lifting capacity: 4,000 kg
• Overall dimensions (L × W × H): 6080 × 2440 × 2680 mm
• Wheelbase: 3070 mm
• Vehicle weight: 12,050 kg
