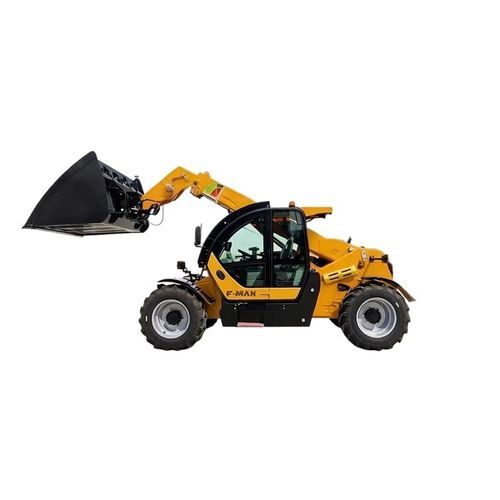

Telehandler with combustion engine FM8357

long-reachhigh payloadindustrial

Product overview
The FM8357 telehandler is a multi-purpose material handling machine for construction sites, warehouses, agricultural farms and industrial environments. It balances lifting height, outreach and load capacity to perform pallet handling, high-level loading and equipment positioning in small-to-medium work zones.

Power system
Equipped with a Cummins engine (rated power 93 kW, displacement 3.9 L) to provide stable output suitable for medium‑intensity continuous operation.

Operating capacity

• Maximum lifting height: 7000 mm
• Maximum outreach: 3920 mm
• Maximum lifting capacity: 3500 kg

Overall structure

• Vehicle weight: 7500 kg
• Wheelbase: 2850 mm
• Overall dimensions (L × W × H): 5000 × 2330 × 2350 mm

Applications

• Handling of building materials and palletized goods
• Loading and unloading at height
• Feeding and bulk handling in agriculture
• Transfer and positioning of equipment
• General high-level and long-reach loading/unloading operations

Technical specifications

• Model: FM8357
• Engine model: Cummins
• Rated power: 93 kW
• Displacement: 3.9 L
• Maximum lifting height: 7000 mm
• Maximum outreach: 3920 mm
• Maximum lifting capacity: 3500 kg
• Overall dimensions (L × W × H): 5000 × 2330 × 2350 mm
• Wheelbase: 2850 mm
• Vehicle weight: 7500 kg
