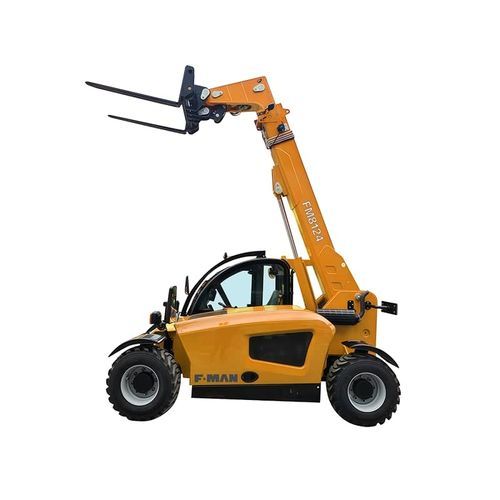

Long-reach telehandler FM8124

compactmanoeuvrablerough terrain

Overview
The FM8124 is a 1.2 t telehandler combining loading, material handling and stacking functions. Its compact footprint and telescopic boom make it suitable for small construction sites, storage areas and municipal works, offering stable operation in confined or uneven environments.

High-efficiency handling capacity
Powered by a Yanmar engine with a rated power of 18.4 kW and 3 L displacement. The machine delivers a maximum lifting height of 4537 mm, a maximum outreach of 3000 mm and a maximum lifting capacity of 1200 kg, enabling effective loading/unloading, transport and stacking tasks.

Flexible operation and precise control
With overall dimensions of 3944 × 1564 × 1995 mm, a wheelbase of 1922 mm and an operating weight of 2750–2900 kg, the FM8124 is designed for manoeuvrability in tight spaces. The telescopic boom and responsive controls provide accurate positioning to improve productivity and reduce operator fatigue.

Applications
Suitable for warehousing and logistics, construction sites, landscaping and municipal engineering projects, particularly for small-scale operations requiring flexible handling, rapid stacking and high-elevation loading/unloading.

Stability and durability
The design focuses on structural stability and low maintenance requirements. Key components are wear-resistant to withstand varied operating conditions and ensure long-term reliable service.

Specifications

• Model: FM8124
• Brand: FMAN
• Engine model: Yanmar
• Rated power: 18.4 kW
• Displacement: 3 L
• Maximum lifting height: 4537 mm
• Maximum outreach: 3000 mm
• Maximum lifting capacity: 1200 kg
• Overall dimensions (L × W × H): 3944 × 1564 × 1995 mm
• Wheelbase: 1922 mm
• Vehicle weight: 2750–2900 kg
