Diesel engine telehandler FM8418

long-reachmanoeuvrablehigh payload

Product Overview

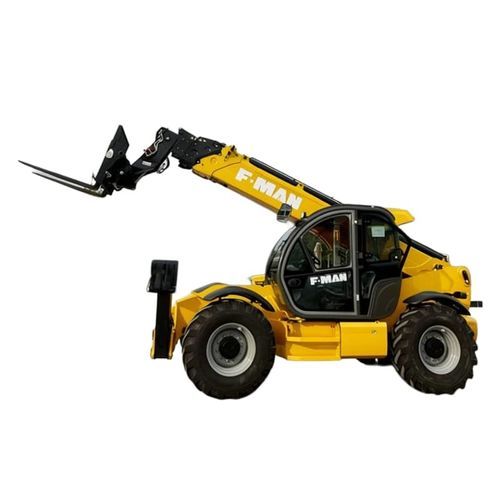

The FM8418 telehandler from FMAN is a multifunctional telescopic handler designed for high‑altitude platform work and heavy material handling. Powered by a Cummins 3.9 L engine with a rated power of 81 kW, the machine delivers stable, sustained performance during prolonged heavy‑duty operation. A vehicle weight of 12,600 kg, a 3,070 mm wheelbase and an optimized chassis ensure excellent stability across varied and demanding jobsite conditions.

Performance and capabilities

• Maximum lifting height: 17.6 m (17,600 mm)
• Maximum outreach (working radius): 13.1 m (13,100 mm)
• Maximum lifting capacity: 4,000 kg
• Overall dimensions (L × W × H): 6,300 × 2,420 × 2,700 mm for flexible operation in confined areas
• Wheelbase: 3,070 mm · Vehicle weight: 12,600 kg

Applications

• High‑altitude platform stacking and positioning
• Long‑reach material handling and placement
• Lifting large loads on construction sites
• Loading/unloading and multi‑level storage in logistics yards and warehouses

Specifications (excerpt)

• Model — FM8418
• Brand — FMAN
• Engine — Cummins, 3.9 L
• Rated power — 81 kW
• Displacement — 3.9 L
• Max. lifting height — 17,600 mm
• Max. outreach — 13,100 mm
• Max. lifting capacity — 4,000 kg
• Overall dimensions (L × W × H) — 6,300 × 2,420 × 2,700 mm
• Wheelbase — 3,070 mm
• Vehicle weight — 12,600 kg

Product summary
The FM8418 provides precise boom control and stable operation suited to construction, logistics and warehousing environments, enabling safe and efficient handling of high‑reach and heavy loads.
