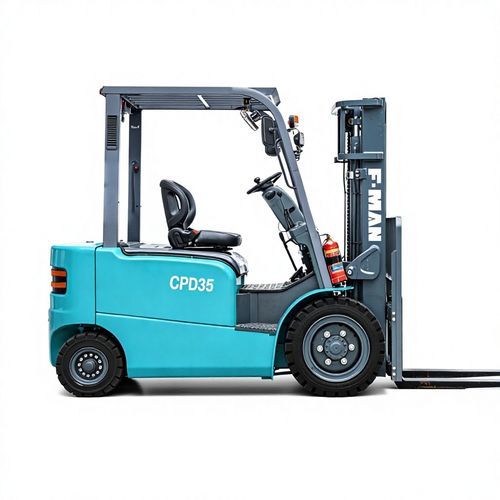

Battery-powered forklift CPD35ride-onfor materials handlingfor warehouse
Add to favorites
Compare this product
Characteristics
- Motor type
- battery-powered
- Operator
- ride-on
- Applications
- for materials handling, for warehouse, indoor
- Other characteristics
- low-noise, compact, counterbalanced, eco-friendly, with AC motor, for heavy loads
- Carrying capacity
Min.: 3,500 kg
(7,716.2 lb)Max.: 3,500 kg
(7,716.2 lb)- Lifting height
Min.: 3 m
(9'10" )Max.: 3 m
(9'10" )- Overall width
Min.: 1,304 mm
(51.3 in)Max.: 1,304 mm
(51.3 in)- Overall length
Min.: 2,597 mm
(102.2 in)Max.: 2,597 mm
(102.2 in)- Weight without load
Min.: 5,530 kg
(12,191.6 lb)Max.: 5,530 kg
(12,191.6 lb)- Height of mast when lowered
Min.: 2,180 mm
(85.8 in)Max.: 2,180 mm
(85.8 in)- Turning circle radius
Min.: 2,440 mm
(96.1 in)Max.: 2,440 mm
(96.1 in)- Travel speed
Min.: 13 km/h
(8.1 mph)Max.: 14 km/h
(8.7 mph)- Lifting speed
Min.: 0.24 m/s
(0.787 ft/s)Max.: 0.4 m/s
(1.312 ft/s)
Description
Overview
The FMAN CPD35 is a 3.5-ton counterbalanced battery electric forklift engineered for high-capacity material handling in industrial warehouses and logistics hubs. With a 3500 kg rated load at a 500 mm load center, a compact chassis and zero local emissions, it is designed for continuous indoor operations where manoeuvrability and uptime are essential.
Technical data
Key features
Applications and advantages
The FMAN CPD35 is a 3.5-ton counterbalanced battery electric forklift engineered for high-capacity material handling in industrial warehouses and logistics hubs. With a 3500 kg rated load at a 500 mm load center, a compact chassis and zero local emissions, it is designed for continuous indoor operations where manoeuvrability and uptime are essential.
Technical data
- Model: CPD35
- Power type: Battery
- Rated load: 3500 kg (at 500 mm)
- Overall dimensions (L×W×H without forks): 2597 × 1304 × 2180 mm
- Lift height: 3000 mm
- Minimum turning radius: 2440 mm
- Front / rear tire size: 28x9-15 / 200/50-10
- Unladen weight: 5530 kg
- Max travel speed: 13 km/h (full load) / 14 km/h (no load)
- Max lift speed: 240 mm/s (full load) / 400 mm/s (no load)
- Battery: 80 V / 404 Ah
- Drive motor: 16.6 kW
- Lift motor: 13 kW
- Control: AC
Key features
- 3.5 t rated capacity for heavy palletised loads
- Battery-electric drive for zero local emissions and low operating noise
- 80 V / 404 Ah battery for extended runtime between charges
- AC-controlled separate drive and lift motors for consistent performance under load
- Compact footprint (2597×1304×2180 mm) and 2440 mm turning radius for indoor manoeuvrability
- Durable tyre configuration and robust chassis for stable operation
Applications and advantages
- Designed for industrial warehouses, distribution centres and logistics hubs requiring 3.5 t capacity
- Well suited to indoor environments where zero local emissions and low noise are required
- Compact dimensions and tight turning radius enable continuous operation in aisles and loading areas, reducing cycle times
