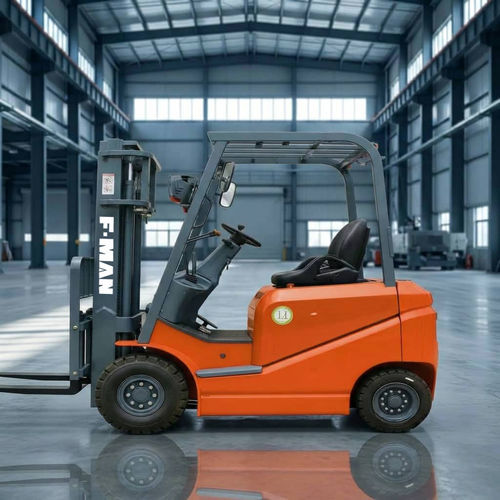

Battery-powered forklift CPD15

ride-onnarrow-aislehandling

Overview
The FMAN CPD15 is a 1.5-ton battery-powered electric counterbalanced forklift designed for low-noise, indoor material handling in warehouses, distribution centers and retail operations. It combines compact external dimensions and a tight turning radius to operate in narrow aisles and confined spaces.

Key product highlights

• Rated load capacity: 1500 kg
• Load center distance: 500 mm
• External dimensions (without forks): 2130 × 1128 × 2060 mm
• Minimum turning radius: 1930 mm
• Maximum lift height: 3000 mm
• Lift speed (full load / no load): 300 mm/s / 400 mm/s
• Travel speed (full load / no load): 13 km/h / 14 km/h
• Battery: 80 V / 202 Ah
• Travel motor / Lifting motor: 8 kW / 10.6 kW, AC control
• Self weight (without load): 2765 kg

Recommended models

• CPD18 Electric Forklift
• CPD30 Electric Forklift
• CPD35 Electric Forklift

Technical data

• Model: CPD15
• Power type: Battery
• Rated load: 1500 kg
• Load center distance: 500 mm
• Overall length (without forks): 2130 mm
• Overall width: 1128 mm
• Maximum lift height: 3000 mm
• Minimum turning radius: 1930 mm
• Overhead guard height: 2060 mm
• Front tire size: 21×8-9-16PR
• Rear tire size: 16x6-8-16PR
• Self weight (without load): 2765 kg
• Maximum travel speed (full load): 13 km/h
• Maximum travel speed (no load): 14 km/h
• Maximum lift speed (full load): 300 mm/s
• Maximum lift speed (no load): 400 mm/s
• Battery voltage/capacity: 80 V / 202 Ah
• Travel motor power: 8 kW
• Lifting motor power: 10.6 kW
• Control type: AC

Detailed description
The CPD15 pairs a compact footprint (2130 × 1128 × 2060 mm, without forks) with a 1930 mm turning radius to maximise manoeuvrability in constrained areas. AC drive with an 8 kW travel motor and a 10.6 kW lifting motor provides responsive travel and consistent lifting under load. Durable front and rear tires, a protective overhead guard and a stable self weight support safe, repeatable operation and simplify routine inspections and maintenance for high availability.
