- Xuzhou FMAN Construction Machinery Manufacture Co., Ltd.

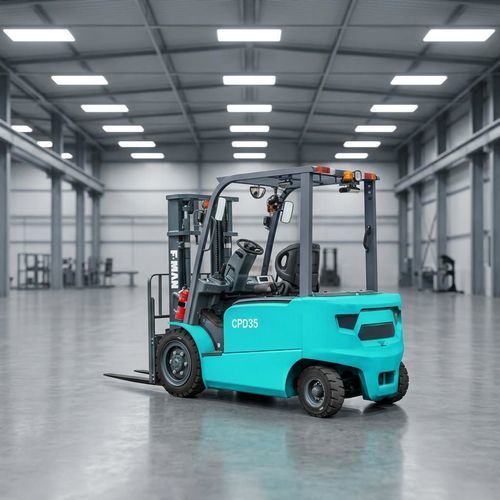

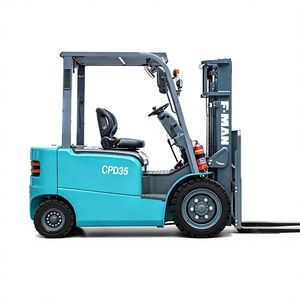

Battery-powered forklift CPD25handlingfor warehousefor materials handling
Add to favorites
Compare this product
Characteristics
- Motor type
- battery-powered
- Applications
- handling, for warehouse, for materials handling, indoor, narrow-aisle
- Other characteristics
- with AC motor, compact, low-noise, eco-friendly, counterbalanced
- Carrying capacity
Min.: 2,500 kg
(5,511.6 lb)Max.: 2,500 kg
(5,511.6 lb)- Lifting height
Min.: 3 m
(9'10" )Max.: 3 m
(9'10" )- Overall width
Min.: 1,160 mm
(45.7 in)Max.: 1,160 mm
(45.7 in)- Overall length
Min.: 2,331 mm
(91.8 in)Max.: 2,331 mm
(91.8 in)- Load center distance
Min.: 500 mm
(19.7 in)Max.: 500 mm
(19.7 in)- Weight without load
Min.: 4,100 kg
(9,039 lb)Max.: 4,100 kg
(9,039 lb)- Height to top of overhead guard
Min.: 2,060 mm
(81.1 in)Max.: 2,060 mm
(81.1 in)- Turning circle radius
Min.: 2,060 mm
(81.1 in)Max.: 2,060 mm
(81.1 in)- Travel speed
Min.: 13 km/h
(8.1 mph)Max.: 14 km/h
(8.7 mph)- Lifting speed
Min.: 0.28 m/s
(0.919 ft/s)Max.: 0.43 m/s
(1.411 ft/s)- Rated output
Min.: 11 kW
(15 hp)Max.: 11 kW
(15 hp)
Description
Overview
The FMAN CPD25 is a 2.5-ton battery-powered electric counterbalanced forklift engineered for intensive material handling in warehouses and logistics hubs. It features a compact chassis for narrow-aisle maneuverability, AC control and battery options (48 V/630 Ah or 80 V/202 Ah), offering zero local emissions and low-noise operation suited to indoor environments.
Key features
Description
The CPD25 combines a compact footprint (2331 × 1160 × 2060 mm without forks) with a 2060 mm minimum turning radius to facilitate operations in confined aisles. It achieves a maximum lift height of 3000 mm and lift speeds of 280 mm/s (full load) and 430 mm/s (no load). Propulsion is provided by an 11 kW travel motor and an 8.6 kW lift motor, powered by battery options (80 V / 202 Ah or 48 V / 630 Ah). The unit attains up to 14 km/h no-load travel speed, balancing productivity and energy efficiency while ensuring quiet, emission-free indoor operation.
Technical specifications
The FMAN CPD25 is a 2.5-ton battery-powered electric counterbalanced forklift engineered for intensive material handling in warehouses and logistics hubs. It features a compact chassis for narrow-aisle maneuverability, AC control and battery options (48 V/630 Ah or 80 V/202 Ah), offering zero local emissions and low-noise operation suited to indoor environments.
Key features
- Rated load capacity: 2,500 kg (load center 500 mm)
- Compact overall dimensions (without forks): 2331 × 1160 × 2060 mm
- Lift height: 3000 mm
- Electric drive with AC control; traveling motor 11 kW, lifting motor 8.6 kW
- Maximum travel speed: 13 km/h (full load) / 14 km/h (no load)
- Lift speed: 280 mm/s (full load) / 430 mm/s (no load)
- Battery options: 48 V / 630 Ah or 80 V / 202 Ah
- Compact turning radius for tight spaces and industrial tires for indoor use
Description
The CPD25 combines a compact footprint (2331 × 1160 × 2060 mm without forks) with a 2060 mm minimum turning radius to facilitate operations in confined aisles. It achieves a maximum lift height of 3000 mm and lift speeds of 280 mm/s (full load) and 430 mm/s (no load). Propulsion is provided by an 11 kW travel motor and an 8.6 kW lift motor, powered by battery options (80 V / 202 Ah or 48 V / 630 Ah). The unit attains up to 14 km/h no-load travel speed, balancing productivity and energy efficiency while ensuring quiet, emission-free indoor operation.
Technical specifications
- Model: CPD25
- Power type: Battery
- Rated load: 2,500 kg
- Load center distance: 500 mm
- Overall length (without forks): 2331 mm
- Overall width: 1160 mm
- Overall height (overhead guard): 2060 mm
- Lift height: 3000 mm
- Minimum turning radius: 2060 mm
- Front tire size: 23×9-10-18PR
- Rear tire size: 18×7-8-14PR
- Self weight (without load): 4100 kg
- Maximum travel speed (full load): 13 km/h
- Maximum travel speed (no load): 14 km/h
- Maximum lift speed (full load): 280 mm/s
- Maximum lift speed (no load): 430 mm/s
- Battery (Voltage/Capacity): 48 V / 630 Ah or 80 V / 202 Ah
- Traveling motor power: 11 kW
- Lifting motor power: 8.6 kW
- Way of control: BC
