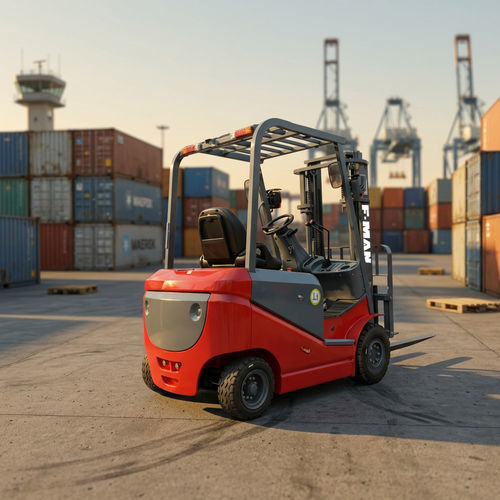

Battery-powered forklift CPD18

ride-onfor materials handlingindoor

Overview
The FMAN CPD18 is a battery-powered electric counterbalanced forklift for indoor material handling in warehouses, distribution centers and logistics facilities. Rated at 1.8 tonnes with a 500 mm load center and up to 3000 mm lift, it is designed to perform stacking, loading/unloading and internal transport where zero-emission, low-noise operation and tight manoeuvring are required.

Key features

• Battery-powered, zero-emission design suitable for indoor use
• Compact footprint (2190×1128×2060 mm without forks) and 1930 mm minimum turning radius for narrow aisles
• AC control system with 8 kW traction motor and 10.6 kW lifting motor for smooth, efficient operation
• Rated load 1800 kg at 500 mm load center; lift height up to 3000 mm
• Robust overhead guard and stable chassis; front/rear tyres optimized for indoor surfaces

Technical data (extracted)
Model: CPD18
Power type: Battery
Rated load: 1800 kg
Load center distance: 500 mm
Overall length (without forks): 2190 mm
Overall width: 1128 mm
Lift height: 3000 mm
Minimum turning radius: 1930 mm
Height of overhead guard: 2060 mm
Front tire size: 21×8-9-16PR
Rear tire size: 16x6-8-16PR
Self weight (without load): 3025 kg
Maximum travel speed (full load): 13 km/h
Maximum travel speed (no load): 14 km/h
Maximum lift speed (full load): 300 mm/s
Maximum lift speed (no load): 400 mm/s
Battery voltage/capacity: 80 V / 202 Ah
Traveling motor: 8 kW
Lifting motor: 10.6 kW
Way of control: AC

Notes
Compact dimensions and a tight turning radius make the CPD18 well suited to confined warehouse aisles and indoor logistics. AC control delivers energy-efficient, low-maintenance performance appropriate for continuous internal handling and dock operations.
