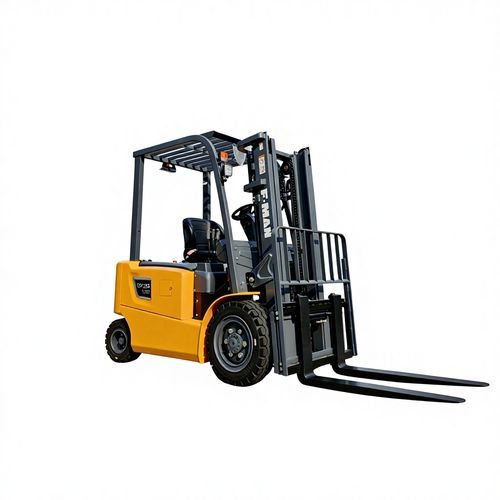

Electric forklift CPD30

ride-onfor warehouseindustrial

Overview
The CPD30 is a 3-ton battery electric forklift designed for heavy-duty material handling in warehouses and industrial logistics hubs. Rated load 3000 kg at 500 mm load center, equipped with an 80 V / 404 Ah traction battery and AC traction and lift motors, it is suited to indoor operations requiring low noise and zero local emissions.

Key technical data

• Model: CPD30
• Power type: Battery
• Rated load: 3000 kg (load center 500 mm)
• Overall length (without forks): 2597 mm
• Overall width: 1304 mm
• Lift height: 3000 mm
• Minimum turning radius: 2440 mm
• Height of overhead guard: 2180 mm
• Front tire size: 28x9-15-14PR
• Rear tire size: 200/50-10
• Self weight (without load): 4695 kg
• Max travel speed (full load): 13 km/h
• Max travel speed (no load): 14 km/h
• Max lift speed (full load): 300 mm/s
• Max lift speed (no load): 400 mm/s
• Battery (Voltage/Capacity): 80 V / 404 Ah
• Travel motor power: 16.6 kW
• Lifting motor power: 13.5 kW
• Way of control: AC

Additional product information
The CPD30 combines stable maneuverability and lift performance with an energy-efficient battery system for continuous indoor use. AC control and separate traction and lifting motors deliver predictable response under load. Dimensions and a 2440 mm turning radius support controlled handling in wide aisles and integration with standard charging routines.

Specifications

• Model: CPD30
• Power: Battery
• Rated load: 3000 kg (500 mm)
• Battery: 80 V / 404 Ah
• Travel motor: 16.6 kW
• Lifting motor: 13.5 kW
• Control: AC
• Dimensions (without forks): 2597 × 1304 × 2180 mm
• Lift height: 3000 mm
• Turning radius: 2440 mm
• Tires: front 28x9-15-14PR; rear 200/50-10
• Net weight: 4695 kg
