Battery-powered forklift CPD20order-pickingfor warehouseindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- battery-powered
- Applications
- order-picking, for warehouse, industrial, for materials handling, handling, narrow-aisle, loading, indoor
- Other characteristics
- with AC motor, eco-friendly, counterbalanced, low-noise, compact
- Carrying capacity
Min.: 2,000 kg
(4,409.2 lb)Max.: 2,000 kg
(4,409.2 lb)- Lifting height
Min.: 3 m
(9'10" )Max.: 3 m
(9'10" )- Overall width
Min.: 1,160 mm
(45.7 in)Max.: 1,160 mm
(45.7 in)- Overall length
Min.: 2,331 mm
(91.8 in)Max.: 2,331 mm
(91.8 in)- Load center distance
Min.: 500 mm
(19.7 in)Max.: 500 mm
(19.7 in)- Weight without load
Min.: 3,740 kg
(8,245.3 lb)Max.: 3,740 kg
(8,245.3 lb)- Height to top of overhead guard
Min.: 2,060 mm
(81.1 in)Max.: 2,060 mm
(81.1 in)- Turning circle radius
Min.: 2,060 mm
(81.1 in)Max.: 2,060 mm
(81.1 in)- Travel speed
Min.: 13 km/h
(8.1 mph)Max.: 14 km/h
(8.7 mph)- Lifting speed
Min.: 0.28 m/s
(0.919 ft/s)Max.: 0.43 m/s
(1.411 ft/s)
Description
Overview

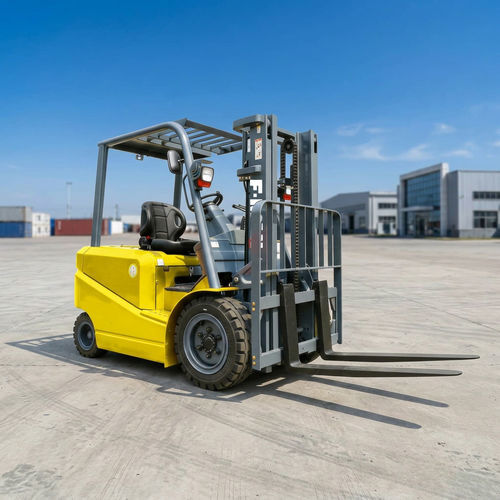

The FMAN CPD20 is a 2-ton battery-powered electric counterbalanced forklift engineered for indoor material handling in warehouses, distribution centers and industrial sites. Designed for daily stacking, loading and order-picking cycles, it combines compact dimensions with zero local emissions for noise- and emission-sensitive environments.
Key features
Dimensions
Overall length (without forks): 2331 mm
Overall width: 1160 mm
Height of overhead guard: 2060 mm
Minimum turning radius: 2060 mm
Wheels & chassis
Front tire size: 23×9-10-18PR
Rear tire size: 18×7-8-14PR
Performance
Maximum travel speed: 13 km/h (full load) / 14 km/h (no load)
Maximum lift speed: 280 mm/s (full load) / 430 mm/s (no load)
Battery voltage / capacity: 80 V / 202 Ah
Travel motor power: 11 kW
Lifting motor power: 8.6 kW
Control: AC
Description
With overall compact dimensions (2331×1160×2060 mm excluding forks) and a minimum turning radius of 2060 mm, the CPD20 excels in confined aisles and dense warehouse layouts. A vehicle curb weight of 3740 kg supports stable lifting and transport cycles while the battery drive ensures zero local emissions and reduced on-site noise.
Specifications
The FMAN CPD20 is a 2-ton battery-powered electric counterbalanced forklift engineered for indoor material handling in warehouses, distribution centers and industrial sites. Designed for daily stacking, loading and order-picking cycles, it combines compact dimensions with zero local emissions for noise- and emission-sensitive environments.
Key features
- Power type: Battery (80 V / 202 Ah)
- Rated load capacity: 2000 kg (load center 500 mm)
- Maximum lift height: 3000 mm
- Compact footprint and 2060 mm minimum turning radius for narrow aisles
- AC control with 11 kW travel motor and 8.6 kW lift motor
- Low noise operation suitable for indoor use
Dimensions
Overall length (without forks): 2331 mm
Overall width: 1160 mm
Height of overhead guard: 2060 mm
Minimum turning radius: 2060 mm
Wheels & chassis
Front tire size: 23×9-10-18PR
Rear tire size: 18×7-8-14PR
Performance
Maximum travel speed: 13 km/h (full load) / 14 km/h (no load)
Maximum lift speed: 280 mm/s (full load) / 430 mm/s (no load)
Battery voltage / capacity: 80 V / 202 Ah
Travel motor power: 11 kW
Lifting motor power: 8.6 kW
Control: AC
Description
With overall compact dimensions (2331×1160×2060 mm excluding forks) and a minimum turning radius of 2060 mm, the CPD20 excels in confined aisles and dense warehouse layouts. A vehicle curb weight of 3740 kg supports stable lifting and transport cycles while the battery drive ensures zero local emissions and reduced on-site noise.
Specifications
- Model: CPD20
- Brand: FMAN
- Power type: Battery (electric)
- Rated load: 2000 kg
- Load center distance: 500 mm
- Overall length (without forks): 2331 mm
- Overall width: 1160 mm
- Lift height (max): 3000 mm
- Minimum turning radius: 2060 mm
- Height of overhead guard: 2060 mm
- Front tire: 23×9-10-18PR
- Rear tire: 18×7-8-14PR
- Self weight (without load): 3740 kg
- Max travel speed: 13 km/h (full load) / 14 km/h (no load)
- Max lift speed: 280 mm/s (full load) / 430 mm/s (no load)
- Battery: 80 V / 202 Ah
- Travel motor: 11 kW
- Lifting motor: 8.6 kW
- Control: AC
