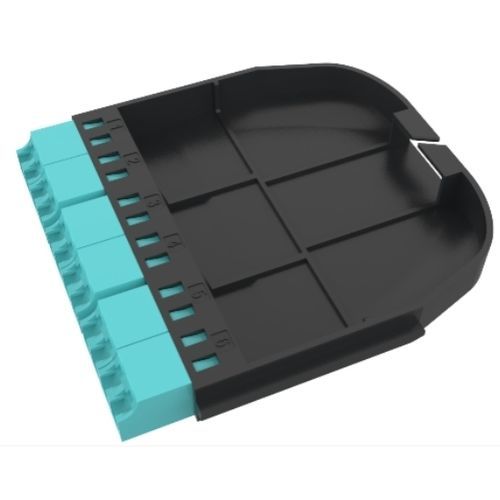

Panel adapter iCONEC-DFU series

LCfor fiber opticscommunication

The UDF series adapter panel provides well-timed and effec-tive port management for MTP or LC connectors to realize the connection management of MTP or LC connectors. Multiple specifications of configurations are available, which can support the use of hardware products in iCONEC®UDF solutions. The panel is used in conjunction with on-site installed connectors, or for the cabling of pre-installed connecors directly from devices to interconnected hardware. • Used in iCONEC®UDF series fiber optic patch panels to realize the connection and deployment of patch cords and pigtails between devices and in patch panels. • The schemes of fixing distributed adapters consider the operation of plugging and unplugging by one hand. • Duplex LC adapters with built-in dustproof covers are used to prevent dust effectively. • DLC and MTP panels can be applied to the cabling installation from the inside of fiber optic patch panels to improve the efficiency. • The hierarchical arrangement perfectly matches the wire trimming devices in the front of the UDF patch panel to make wiretrimming simple and reliable.
