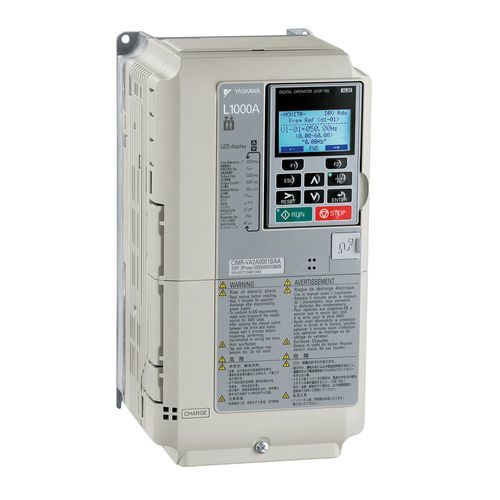

Induction frequency inverter L1000A series
permanent magnetfor elevators200-480 V

Induction frequency inverter - L1000A series - YASKAWA Europe GmbH - permanent magnet / for elevators / 200-480 V
Induction frequency inverter - L1000A series - YASKAWA Europe GmbH - permanent magnet / for elevators / 200-480 V
Induction frequency inverter - L1000A series - YASKAWA Europe GmbH - permanent magnet / for elevators / 200-480 V - image - 2
Induction frequency inverter - L1000A series - YASKAWA Europe GmbH - permanent magnet / for elevators / 200-480 V - image - 3
Add to favorites
Compare this product
Go to the YASKAWA Europe GmbH website for more information

Characteristics

Type
induction, permanent magnet
Applications
for elevators
Other characteristics
200-480 V, 400 V
Power

Max.: 110 W
(375.34 BTU/h)

Min.: 1.5 W
(5.12 BTU/h)

Intensity

Max.: 415 A

Min.: 4.8 A

Description

Overview Yaskawa L1000A lift drives meet current technical requirements for elevators. They control both induction and permanent-magnet motors and are suited to new installations, machine-room-less lifts and modernization projects. The series combines proven Yaskawa reliability with features for improved ride comfort and operational flexibility.

Key features
  • Flexible controller interface
  • Brake monitoring
  • Operation without motor contactors
  • Rescue operation


Available variants (series models and main ratings)
  • CIMR-LC4A0005BAA — Rated output current (HD): 4.8 A; Max. applicable motor power (HD): 1.5 kW
  • CIMR-LC4A0006BAA — Rated output current (HD): 5.5 A; Max. applicable motor power (HD): 2.2 kW
  • CIMR-LC2A0008BAA — Rated output current (HD): 8 A; Max. applicable motor power (HD): 1.5 kW
  • CIMR-LC4A0009BAA — Rated output current (HD): 9.2 A; Max. applicable motor power (HD): 3.7 kW
  • CIMR-LC2A0011BAA — Rated output current (HD): 11 A; Max. applicable motor power (HD): 2.2 kW
  • CIMR-LC4A0015BAA — Rated output current (HD): 14.8 A; Max. applicable motor power (HD): 5.5 kW
  • CIMR-LC2A0018BAA — Rated output current (HD): 17.5 A; Max. applicable motor power (HD): 3.7 kW
  • CIMR-LC4A0018BAA — Rated output current (HD): 18 A; Max. applicable motor power (HD): 7.5 kW
  • CIMR-LC4A0024BAA — Rated output current (HD): 24 A; Max. applicable motor power (HD): 11 kW
  • CIMR-LC2A0025BAA — Rated output current (HD): 25 A; Max. applicable motor power (HD): 5.5 kW
  • CIMR-LC4A0031BAA — Rated output current (HD): 31 A; Max. applicable motor power (HD): 15 kW
  • CIMR-LC2A0033BAA — Rated output current (HD): 33 A; Max. applicable motor power (HD): 7.5 kW
  • CIMR-LC4A0039BAA — Rated output current (HD): 39 A; Max. applicable motor power (HD): 18.5 kW
  • CIMR-LC4A0045BAA — Rated output current (HD): 45 A; Max. applicable motor power (HD): 22 kW
  • CIMR-LC2A0047BAA — Rated output current (HD): 47 A; Max. applicable motor power (HD): 11 kW
  • CIMR-LC2A0060BAA — Rated output current (HD): 60 A; Max. applicable motor power (HD): 15 kW
  • CIMR-LC4A0060BAA — Rated output current (HD): 60 A; Max. applicable motor power (HD): 30 kW
  • CIMR-LC2A0075BAA — Rated output current (HD): 75 A; Max. applicable motor power (HD): 18.5 kW
  • CIMR-LC4A0075BAA — Rated output current (HD): 75 A; Max. applicable motor power (HD): 37 kW
  • CIMR-LC4A0091BAA — Rated output current (HD): 91 A; Max. applicable motor power (HD): 45 kW
  • CIMR-LC4A0112BAA — Rated output current (HD): 112 A; Max. applicable motor power (HD): 55 kW
  • CIMR-LC2A0115BAA — Rated output current (HD): 115 A; Max. applicable motor power (HD): 30 kW
  • CIMR-LC2A0145BAA — Rated output current (HD): 145 A; Max. applicable motor power (HD): 37 kW
  • CIMR-LC4A0150BAA — Rated output current (HD): 150 A; Max. applicable motor power (HD): 75 kW
  • CIMR-LC2A0180BAA — Rated output current (HD): 180 A; Max. applicable motor power (HD): 45 kW
  • CIMR-LC4A0180BAA — Rated output current (HD): 180 A; Max. applicable motor power (HD): 90 kW
  • CIMR-LC2A0215BAA — Rated output current (HD): 215 A; Max. applicable motor power (HD): 55 kW
  • CIMR-LC4A0216BAA — Rated output current (HD): 216 A; Max. applicable motor power (HD): 110 kW
  • CIMR-LC2A0283BAA — Rated output current (HD): 283 A; Max. applicable motor power (HD): 75 kW
  • CIMR-LC2A0346BAA — Rated output current (HD): 346 A; Max. applicable motor power (HD): 90 kW
  • CIMR-LC2A0415BAA — Rated output current (HD): 415 A; Max. applicable motor power (HD): 110 kW


Technical specifications
  • Supported motor types: Induction motor and Permanent magnet motor
  • Input power supply options: 200 V or 400 V
  • Input power phases: 3-phase
  • EMC filter (embedded): No (product filter indicates embedded EMC filter = no)
  • Application: Lift (elevator) drives, suitable for new installation, machine-room-less lifts and modernisation
  • Standards compliance: CE, RoHS, UL, cUL, UKCA (depending on model/market)
  • Functional highlights: Flexible controller interface; Brake monitoring; Operation without motor contactors; Rescue operation
  • Manufacturer: Yaskawa (L1000A Series)
