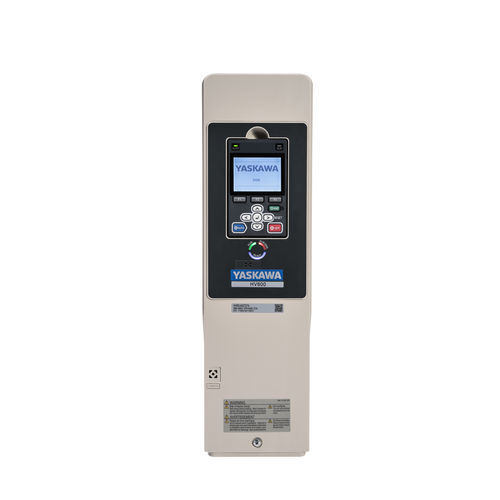

Three-phase frequency inverter HV600 series

HVACvariable-frequency200-480 V

Overview
The HV600 Series by Yaskawa is a family of variable frequency drives designed for commercial HVAC applications. Building owners, facility managers and mechanical contractors specify HV600 drives for flexible control, reduced downtime and multiple packaging options.

Key features

• Industry experience since 1988
• Quick commissioning and easy setup
• User‑friendly interface for field technicians
• Fast delivery and broad model availability
• Multiple packaging options for different installations

Models and key specs (selected)

• CIPR-HV60C4005CFA — Rated output current (ND): 4.8 A — Max applicable motor power (ND): 1.5 kW
• CIPR-HV60C4011CFA — Rated output current (ND): 11 A — Max applicable motor power (ND): 4 kW
• CIPR-HV60C4027CFA — Rated output current (ND): 27 A — Max applicable motor power (ND): 11 kW
• CIPR-HV60C4052CFA — Rated output current (ND): 52 A — Max applicable motor power (ND): 22 kW
• CIPR-HV60C4096CFA — Rated output current (ND): 96 A — Max applicable motor power (ND): 45 kW
• CIPR-HV60C4124CFA — Rated output current (ND): 124 A — Max applicable motor power (ND): 55 kW
• CIPR-HV60C4156CFA — Rated output current (ND): 156 A — Max applicable motor power (ND): 75 kW
• CIPR-HV60A4240CFA — Rated output current (ND): 240 A — Max applicable motor power (ND): 110 kW
• CIPR-HV60C4302CFA — Rated output current (ND): 302 A — Max applicable motor power (ND): 160 kW

Characteristics / technical specifications

• Series: HV600 Series
• Brand: Yaskawa
• Main application: Commercial HVAC
• Input power supply options: 200 V or 400 V
• Input power phases: 3‑phase
• EMC filter (embedded): No (depending on model/options)
• Rated output current range: approx. 4.8 A to 302 A (model dependent)
• Max applicable motor power range: approx. 1.5 kW to 160 kW (model dependent)
